Product specifications

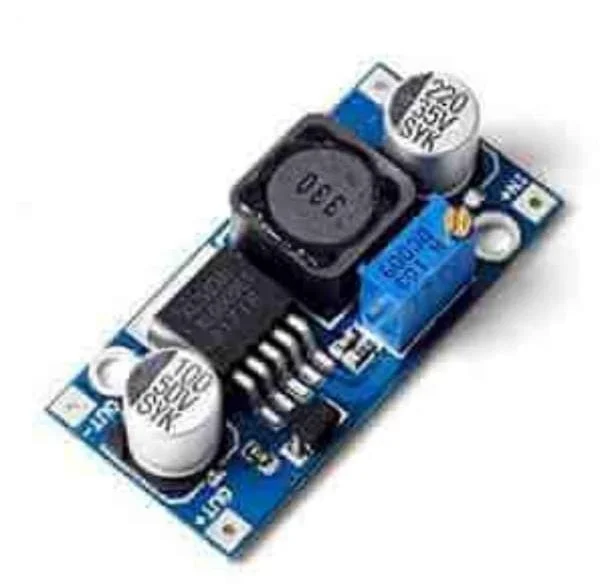

• Product type: XL6009 Module
• Module function: DC Step up module, voltage booster, power converter
• Dimensions: 45 mm x 22 mm
• Package contains: 1 piece of packedXL6009 voltage booster regulator module

XL6009 module is a type of regulator with a wide range of input current mode DC to DC converter. It can generate either positive or negative output voltage. It is configurable as a boost flyback SEPIC or inverting converter. HL6009 module has inbuilt N-channel power MOSFET and a fixed-frequency oscillator. This regulator module has a special design for portable electronics equipment applications.

Specifications

Input voltage: 3 v to 32 v

Output voltage: adjustable between 5V to 35V

Output type: Positive or negative output voltage with a single feedback pin.

Switching frequency: 400KHz

Maximum switching current: 4A

Reference adjustable voltage: 1.25v

Package type: TO-263-5L

Control type: current mode control which provides an excellent transient response
