Product Details

• Product type: rain sensor module
• Function: rain detection and rainfall intensity measurement and monitoring
• Weight: aprx 8g
• PCB or module size: 30mm x 16mm
• Control board size: 54mm x 40mm
• Colour and shape: as shown in image
• Package contains: 1 x control board, PCB board module and 2 X female to female jumper wire

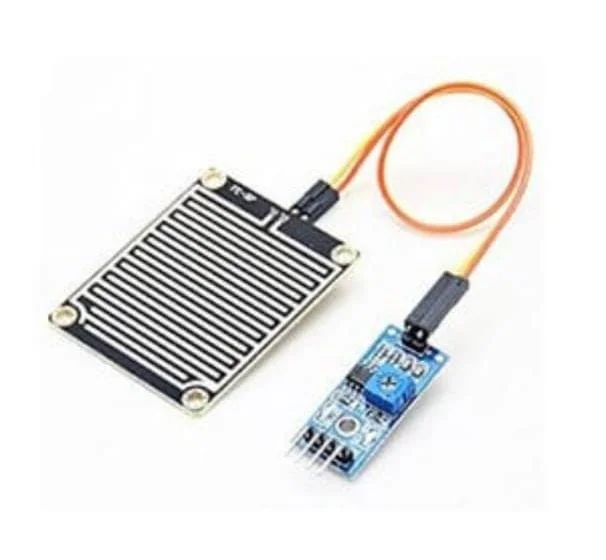

Rain Sensor or detector is simple and easy to use the module for rain detector. The module works as a switch when rain falls on the module and also measures rain intensity. This rain module can measure beyond humidity detector, which means it can measure what humidity cannot. The complete module comes with a rain board, a control board, and a connecting wire.

Specifications:

Voltage supply: 3.5V-5V

Typical voltage supply: 5V

Output type: analog output voltage (AO) and digital switching voltage(DO)

Voltage compactor IC: lm393

Sensitivity: adjustable with inbuilt potentiometer

With volts hole (helps to install easily)

High durability

Antioxidant material

Pin Description

Vcc

GND

DO: digital output

AO: analog output
