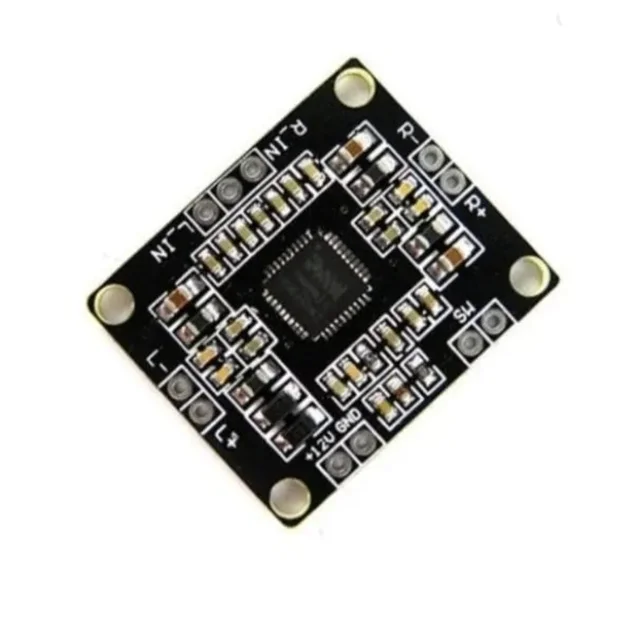

PAM8610 2x15W RMS Dual Channel Digital Stereo Class-D Amplifier Module

  The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%) low EMI and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control range [+32dB to -75dB]. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors ICs.

PAM8610 is a 12V Mini class D digital audio(power) amplifier board with 2 x15w Dual Channel Stereo output. It?s Highly efficient 12V power supply Outputs 10W + 10W of power the chip without heat sink has overheating issues so heat sink is recommended over-current protection function. The board has a switching function the SW shorted turns off the power amplifier.

Specifications:

Supply voltage: DC 6V-15V

2.Recommendation voltage:DC12V 2A

Output power: 10W*2(8) 15W*2(4)

4.Channel type: Double Channels

Quiescent current; 20mA

SNR: 90%

7.working mode:D type

Frequency range: 20Hz-15KHz

Input impedance: 15K

Output Impedance: 4-8

Dimensions: 28mm * 22mm * 2.5mm

                                                                           Parameters:

Model PAM 8610

Input Voltage (V) 7 ~ 15V

Working Mode Class D (PWM)

Power (W) 2 X 15W Peak RMS

Length (mm) 30.5mm

Width (mm) 25.5mm

Height (mm) 2.6mm

Weight (gm) 5gm
