Product Details

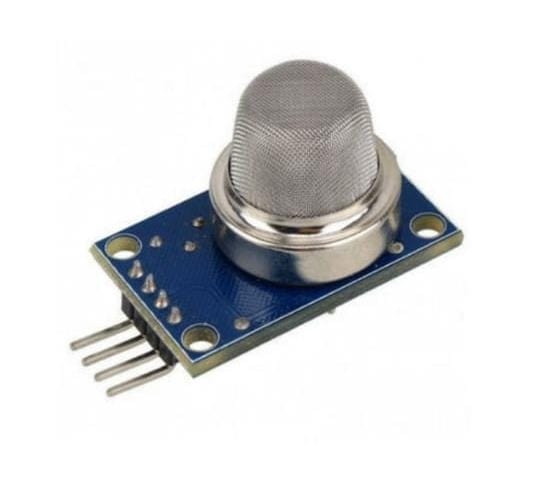

• Product: MQ6 gas sensor
• Number of pins: 4
• Mounting type: mounting holes are given on module
• Module dimension: 40mm x 20mm
• Package contains: 1 x MQ6 LPG Isobutane Propane Gas Sensor Module

MQ6 is a liquefied petroleum gas (LPG) detector and can detect and measure gases like LPG Propane and isobutane. The module has both digital and analog pins. Because of digital pins it can be used without even a microcontroller and this is the best choice if the user just wants to detect the gas. The LED on the board will show the availability of the gas. If LED glows then there is gas otherwise it will be turned off. On the other hand the analog pins are used when the user needs to measure the gas in PPM. The analog pins are TTL compatible and work on 5V so they can be easily interfaced with MCU.

This gas sensor module is highly sensitive and very simple to use. It finds application in gas detecting equipment in domestic and industry to detect the presence of LPG isobutane propane alcohol cooking fumes and cigarette smoke .                Features

Very sensitive and stable

Both digital and analog pins available

Can detect gas even without MCU

Adjustable sensitivity with the help of a potentiometer

The simple circuit required to measure PPM

Specification

Operating voltage: 5V

Interface: analog

Analog output: 0V to 5V

Digital output: 0V to 5V

Preheat Duration: 20s

Application

Gas leakage detector

To detect the presence of LPG isobutane propane alcohol cooking fumes and cigarette smoke

Safety standard maintenance

Home automation

Air quality monitor

Portable gas detector

Instructions to use :-

The module requires a prehead duration of the 20s. Means it can show value or nothing till the 20s
