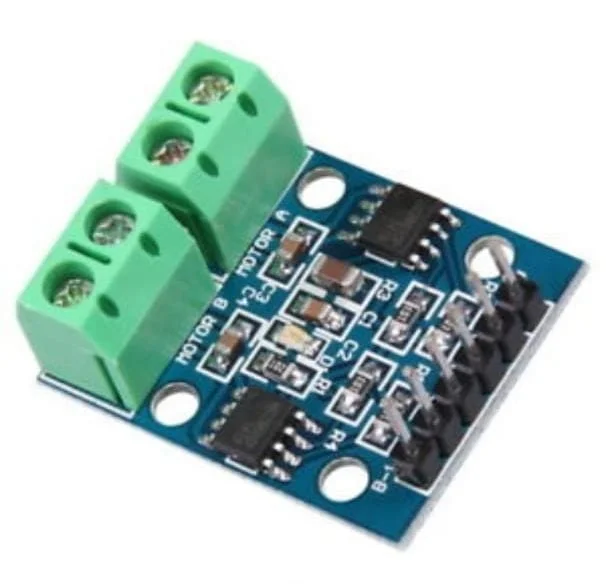

L9110 module is a very compact 2 way or dual-channel H-bridge Motor controller or driver module. The module has 2 L9110 IC that is capable to control either one stepper motor or 2 DC motors independently. It accepts a wide range of voltage supply from 2.5V to 12V which makes the device compatible for both standard 3.3V and 5V microcontroller. Both motor controller chip can drive up to 800mA of continuous current. The module has a built-in output clamp diode to protect sensitive electronics like microcontrollers.
The module is suitable to control small robots. It has a set of headers pins to connect with a microcontroller and a set of 2 screw terminals to connect with motors that are very convenient. The speed of the motor can be easily controlled with PWM (pulse width modulation) signal and direct with digital output.
Can drive a stepper motor or 2 DC motors independently
Built-in output clamp diode
Wide range of voltage supply
Compatible with both standard 3.3V and 5V microcontroller
Mounting holes to mount easily
Voltage supply range: 2.5V to 12V
Maximum output current: 800mA
Chip in the module: L9110s
Motors that it can drive: either one stepper motor or 2 DC Motor
