Product specifications

• Product type: L293D motor driver Module
• IC: L293D
• Screw mount hole size: 3mm (diameter)
• Dimensions: 36 mm X 24 mm
• Weight: 15 g
• Package contains: 1 X L293D driver module (actual product colour may vary from the image)

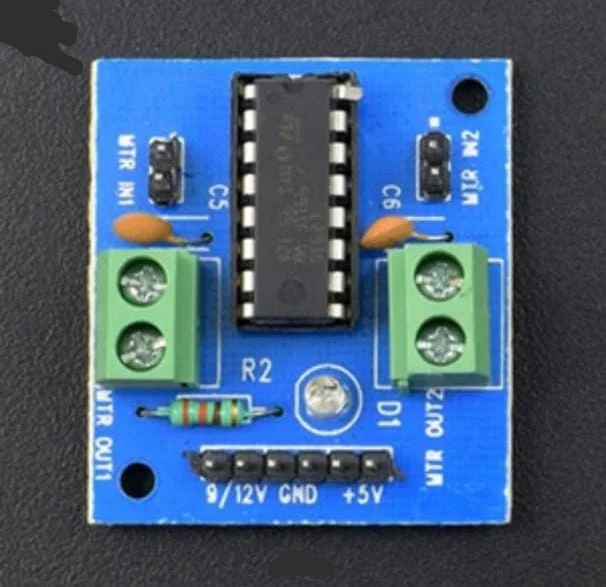

L293D Motor Driver Module is an expansion board or driver module of L293D. L293D IC is a dual half-bridge driver IC, so the module drives the motor in any direction and speed. It is compatible with any controllers and processors like Arduino, AVR, PIC, etc and with an easy interface. It makes easy to make project rather than using an IC.

Specification

Motor Voltage supply: 9-12V

Logical voltage supply: 5V

Maximum logic control input: 7 VDC

Output Drive current: 600mA per channel

Interface lines: Inbuild or soldered berg connector
