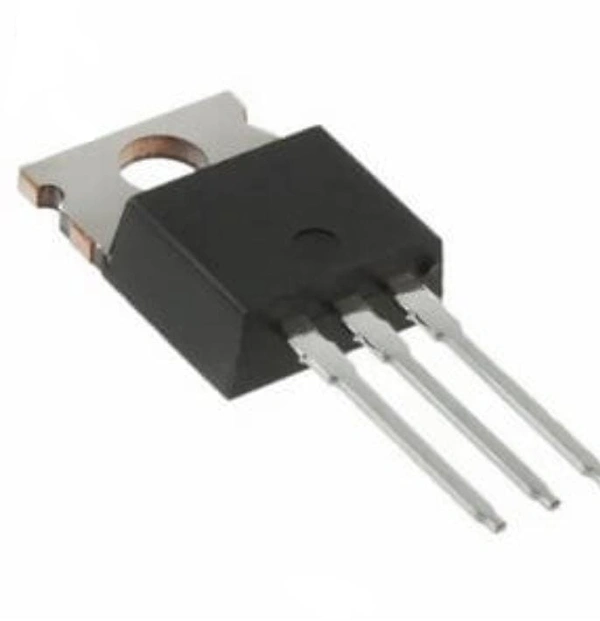

IRF9520 100V 6.8A P-Channel Power MOSFET

IRF9520 100V 6.8A P-Channel Power MOSFET

₹ 49

Delivery Options

Product Details

  • Product: IRF9520
  • Transistor type: MOSFET
  • Control channel: P-Channel
  • No of pins: 3
  • Package: TO-220AB
  • Mounting type: through hole
  • Package contains: 1 x IRF9520 100V 6.8A P-Channel Power MOSFET


Dynamic dv/dt capability

Advanced process technology

Fully avalanche rated

Fast switching

175? operating temperature


Drain-source voltage: -100V

Drain-gate voltage: -100V

Gate-source voltage: �20V

Continuous drain current:

At 25?: -6.8A

At 100?: -4.8A

Pulsed drain current: -27A

Maximum avalanche current: -4A

Gate threshold voltage: -2V to -4V

Drain-to-source leakage current: -25�A

Gate-to-source forward leakage: -100nA

Gate-to-source reverse leakage: 100nA

Rise time: 47nS

Fall time: 31nS

Turn-on delay time: 14nS

Turn-off delay time: 28nS

Diode forward voltage: -1.6V

Reverse recovery time: 100ns to 150ns

Reverse recovery charge: 420nC to 630nC

Maximum power dissipation: 48W

Operating temperature: -55? to 175?
