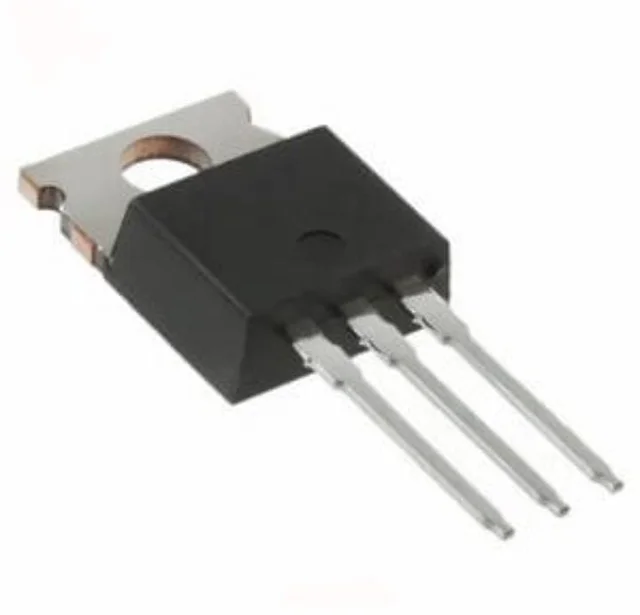

IRF530 100V 17A N-Channel Power MOSFET

IRF530 100V 17A N-Channel Power MOSFET

₹ 21

₹ 39


Delivery Options

Product Details

  • Product: IRF530
  • Transistor type: MOSFET
  • Control channel: N-Channel
  • No of pins: 3
  • Package: TO-220AB
  • Mounting type: through hole
  • Package contains: 1 x IRF530 100V 17A N-Channel Power MOSFET


Dynamic dv/dt capability

Advanced process technology

Ultra low on-resistance

Fully avalanche rated

Fast switching

175? operating temperature


Drain-source voltage: 100V

Drain-gate voltage: 100V

Gate-source voltage: �20V

Continuous drain currentl

At 25?: 17A

At 100?: 12A

Pulsed drain current: 60A

Maximum avalanche current: 9A

Gate threshold voltage: 2V to 4V

Drain-to-source leakage current: 25�A

Gate-to-source forward leakage: 100nA

Gate-to-source reverse leakage: -100nA

Rise time: 22nS

Fall time: 25nS

Turn-on delay time: 9.2nS

Turn-off delay time: 35nS

Diode forward voltage: 1.3V

Reverse recovery time: 93ns to 140ns

Reverse recovery charge: 320nC to 480nC

Maximum power dissipation: 70W

Operating temperature: -55? to 175?
