Product Details

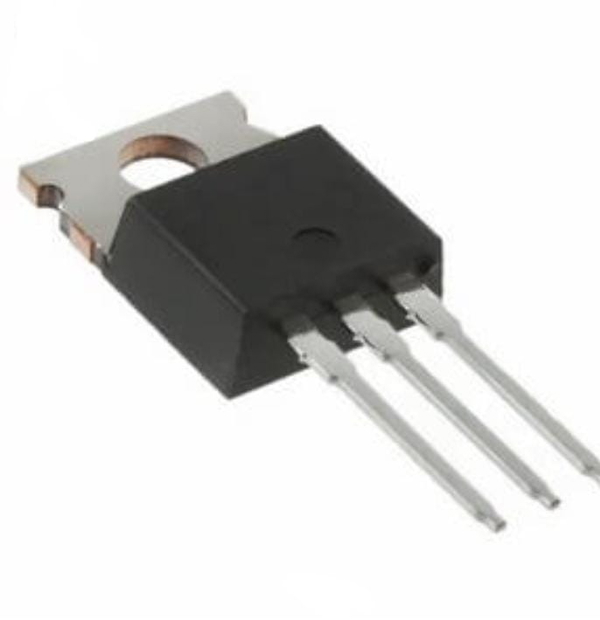

• Product: IRF1407
• Transistor type: MOSFET
• Control channel: N-Channel
• No of pins: 3
• Package: TO-220AB
• Mounting type: through hole
• Package contains: 1 x IRF1407 -75V 130A N-Channel Power MOSFET

Features

Dynamic dv/dt capability

Repetitive avalanche rated

Ultra low on-resistance

Advanced process technology

Fast switching

175? operating temperature

Specification

Drain-source voltage: 75V

Drain-gate voltage: 75V

Gate-source voltage: �20V

Continuous drain current:

At 25?: 100A

At 100?: 70A

Pulsed drain current: 520A

Gate threshold voltage: 2V to 4V

Drain-to-source leakage current: 20�A

Gate-to-source forward leakage: 200nA

Gate-to-source reverse leakage: -200nA

Rise time: 150nS

Fall time: 140nS

Turn-on delay time: 1nS

Turn-off delay time: 150nS

Diode forward voltage: 1.3V

Reverse recovery time: 110ns to 170ns

Reverse recovery charge: 390nC to 590nC

Maximum power dissipation: 3.8W

Operating temperature: -55? to 175?
