Product Specifications

• IC Number: HT12D

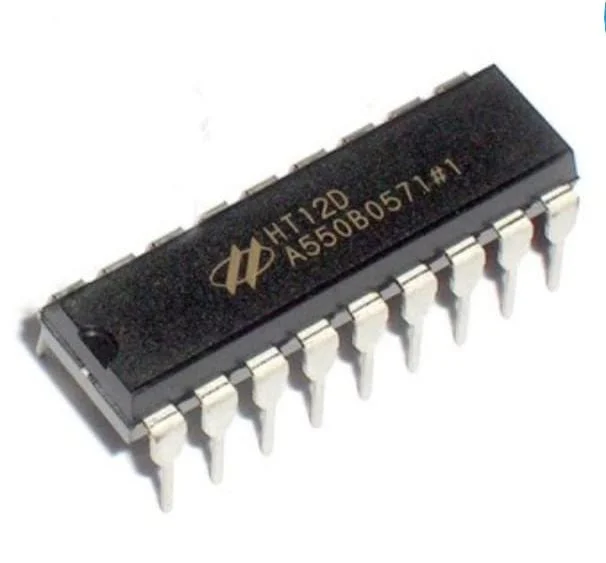

• Function of IC: Decoder IC for RF
• Number of pins: 18
• PIN Type: DIP
• Operating voltage: 2.4V-12V
• Package contains: unused and checked 1 piece of HT12D

HT12D is a decoder IC for remote control applications commonly in Radiofrequency (RF) wireless applications and it is 2 series decoders. We can transmit 12 bits of parallel data serially by using HT12E and HT12D. HT12D is a simple Decoder IC that converts serial data to its input through RF to 12 bits parallel data in which there are 4 data bits and 8 address bits. These 8 bits addresses are security code for 4 bits data which means we can provide 8 bits security code for 4 bits data and can use multiple receivers by using the same transmitter.

Specification

Range of Operating voltage: 2.4V~12V</li>

CMOS technology with low power and high noise immunity

Standby current: low

Decoding bits: 12 bits of information

HT12D bits classification: 4 data bits and 8 address bits

Oscillator: Built-in and needs only 5% resistors

It has a valid transmission indicator

Easy to interface with an RF or IR transmission

Does not require any external components

It is 212 series of encoders
