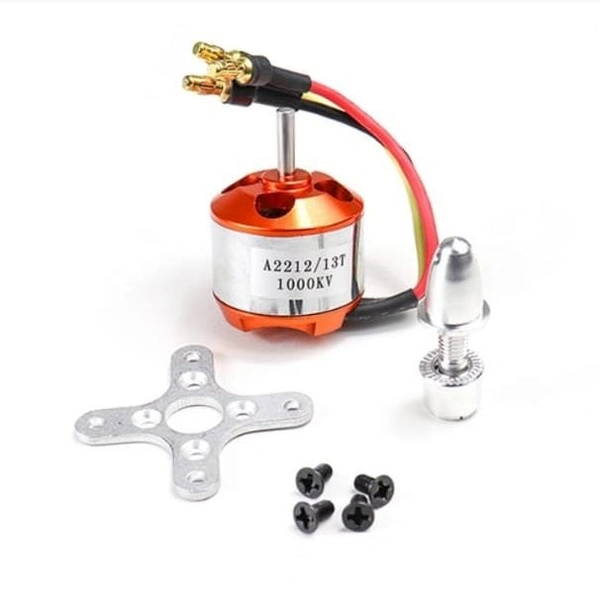

A2212 1000KV BLDC Brushless DC Motor for Drone - r231

Product Details

• Product: A2212 BLDC Motor
• Motor dimension: 27.5mm x 30mm
• shaft diameter: 3.175mm
• Weight: approx 50g

A2212 is a BLDC brushless DC motor specially designed for quadcopters multi-copters drones toy drones or DIY planes. It is a high speed and outliner type motor. Its outside rotates while inside stays fixed. It has a long life as there is no moving contact.

This motor is the best choice for medium size quadcopter with 8 to 10 inches propeller. A2212 motor is easy to work with many driver modules available. It is a three-phase motor that gives accurate and smooth speed control.

Specification

Operating voltage: 7.2V to 12V (2S-3S LiPo battery)

No-load current: 0.5A

Maximum current: 13A for the 60S

Rated KV: 100

Maximum operating temperature: +85?

Features

Accurate and smooth speed control because of 3 phase connections

Long-life as there is no moving contact

Easy to work with most of the available driver modules

Very efficient for quadcopters multi-copters drones toy drone or DIY plane
