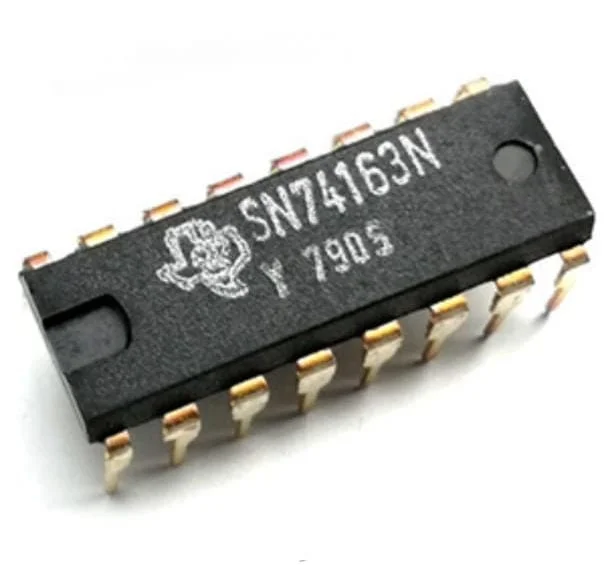

74163 IC Presettable Synchronous 4-bit binary counter IC

Product details

• Product type: Binary UP Counter IC
• IC number: 74163
• Technology: CMOS
• Logic family: 74 series
• Number of pins: 16
• Pin type: through hole
• Package: PDIP-16 tube type
• Package contains: 1 x 74163 IC

74163 is a high speed synchronous modulo-16 binary type counter. The Ic has two type of count enable inputs and a terminal count output which forms a synchronous multistage counter. It has a single circuit of 4 bit counter and it is a UP counter.

Specification:-

Voltage supply: 4.5-5.5v

Typical voltage supply: 5V

 Maximum clock frequency: 30MHz

High speed

Low power consumption

TTL compatible

High noise immunity
