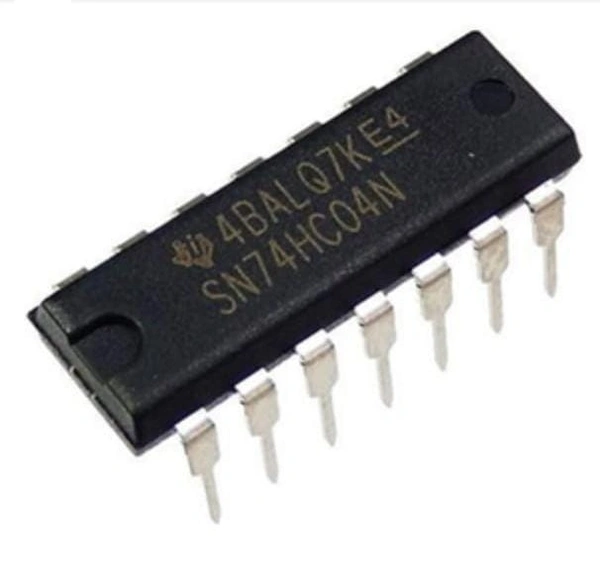

7404 IC - NOT gate Hex Inverter

₹ 29

₹ 39

26%

Product Specifications

• Gate Type: NOT Gate
• Number of Gates count in one IC: 6 Gates
• Inputs Number per Gate: 1
• IC Type: DIP
• Number of pins: 14
• Power Consumption: Low
• Package Contains: Unused and checked 1 piece of 7404

7404 is a member of 74xxx series gate ICs and has the functionality of NOT get. It simply inverts the given signal and has 6 NOT gates.  Another name of this IC is also hex inverter.

Truth Table of NOT Gate

INPUT

OUTPUT

A

NOT A

0

1

1

0

Specification

Large operating voltage

Its operating conditions are wide

Maximum Current that output can draw: 8mA

It has TTL outputs</li>

Its power consumption is low

Range of operating voltage: 4.75V to 5.5V

Maximum limit of voltage: 7V
