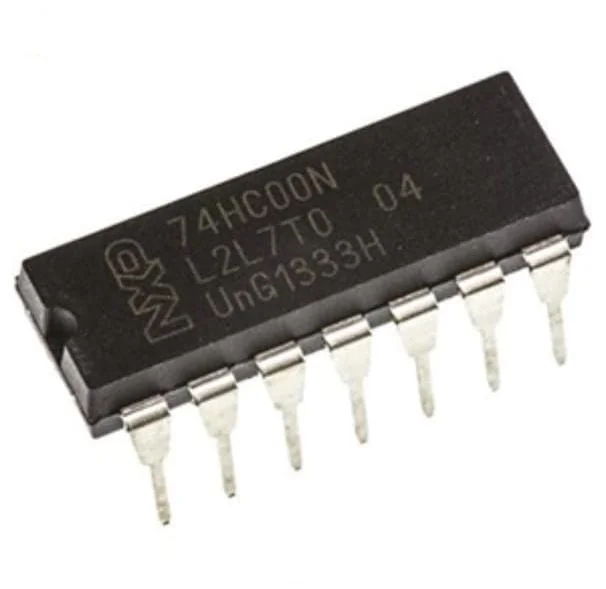

7400 IC - Quad 2 - Input NAND gate

7400 IC - Quad 2 - Input NAND gate

₹ 25

₹ 29

14%


Delivery Options

Product Not Available

Product details

  • IC number: 7400
  • Function: NAND gate IC
  • Number of gates in single IC package: 4
  • Category: 74xx series
  • Pin counts: 14
  • Pin type: through hole
  • Package: 14-DIP (Dual-in-Line) Plastic package

7400 is a logic gate 74xx series IC. It performs logic NAND and contains 4 such circuits in 1 integrated circuit (IC) package.


Specification


Supply voltage: 4.5V to 5.25V

Typical operating voltage: 5V

Minimum high-level input voltage: 2V

Low-level input voltage: 0.8V

Operating Temperature: 0? to 700?

                                                                               Package Contains:

1 x 7400 NAND gate IC
