Product Details

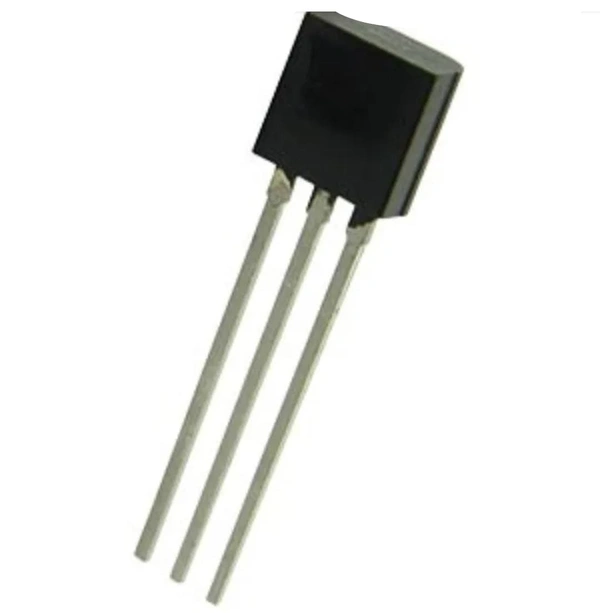

• Product: 2N5551 Transistor
• Polarity: NPN
• Number of pins: 3
• package: TO-92
• Mounting type: Through hole
• Package contains: 5 x 2N5551 General Purpose NPN Transistor

Specification

Collector-emitter voltage: 160V

Collector-base voltage: 180V

Emitter-base voltage: 6V

Continuous collector current: 600mA

DC current gain (hFE): 80 when IC: 10mA

Total power dissipation: 625mW

Storage and operating temperature range: -55? to +150?

Application

Low power amplifiers

Current amplifier

Small signal booster

Audio or other signal amplifiers

Darlington pair
