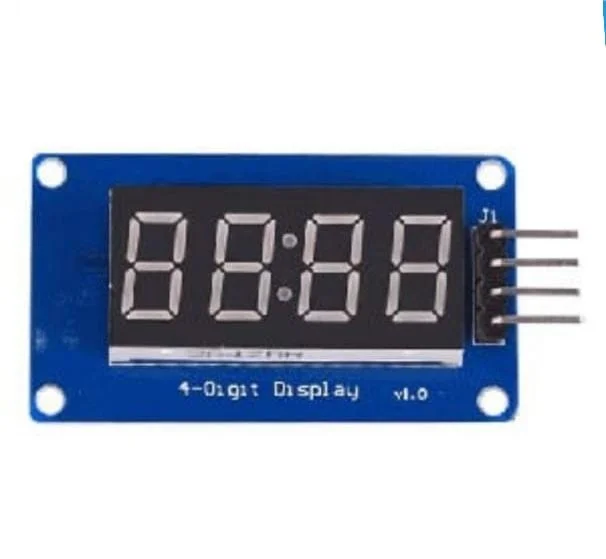

4-Digit Multiplexed 7 Segment LED Display Module for Clock

4-Digit Multiplexed 7 Segment LED Display Module for Clock

₹ 180

₹ 199

10%


Delivery Options

Product Not Available

Product details:

  • Product: 4 digit 7 segment display module
  • Driver IC: TM1637
  • Digits:  Four
  • Surface Colour:  Black
  • Epoxy Colour: Milky White
  • PCB color: Blue
  • Dimensions :42mm x 24mm x 12mm
  • Digit Height: 14.2mm
  • LED colour: green or red (depends on availability)
  • Package contains: 1 x 4 digit 7 segment LED display module for Arduino

The seven segment Module is multiplexed module of 4 pcs 7 segment display and TM1637 driver IC. the module makes easy to interface with Arduino controller or process as it is already multiplexed. For makes it is difficult to multiplex all the 7 segments LED display to make a clock or display 4 digit number. It saves pins in the controller that can be used to interface some other device


The module takes some extra bucks than individual components but it saves lots of time effort and pins on the controller. This module is most suitable for the digital clock as it has a dot(.) after every digit and a colon (:) after 2 digit which is perfect to display time.


Specification

Voltage: 3.3V to 5V

Compatible with Arduino AVR PIC or any other controller

Easy to interface

Saves pins of the controller


Application

DIY Digital Clock

Other electronics project to display 4 digit


Pin Description

GND

VCC

DIO

CLK
