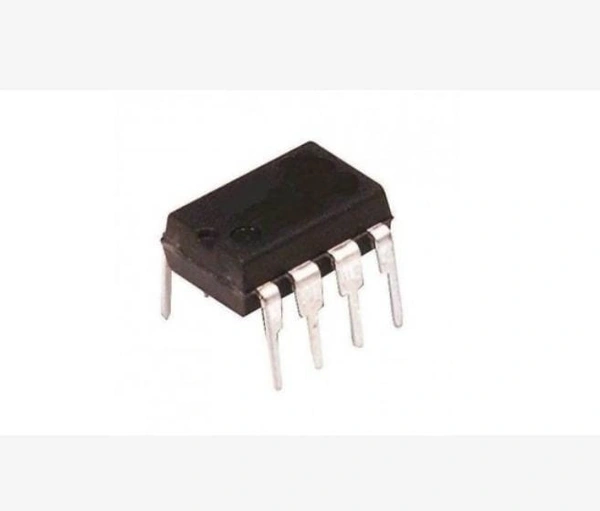

24C16 16 Kbit Serial I2C Bus EEPROM Memory IC

24C16 16 Kbit Serial I2C Bus EEPROM Memory IC

₹ 29

Delivery Options

Product Not Available

Product Details

  • Product type: EEPROM memory IC
  • IC number: 24LC16
  • Number of pins: 8
  • Mounting type: through hole
  • Package type: PDIP-8
  • Package contains: 1 x 24LC16 16 Kbit Serial I2C Bus EEPROM Memory IC


Single voltage supply operation from 2.2V to 5.5V

16-byte page buffer

2 wire protocol (IIC/I2C) interface

Schmitt trigger inputs for noise suppression

Output slope control to eliminate ground bounce

Write protocol pin for hardware and software data protection

100kHz and 400kHz clock frequency compatibility

Maximum 5 ms page write time

Typical 3ms write cycle time with auto-erase function

Hardware write-protect

Self-timed erased/write cycle

More than 1M read/write cycles

Maximum 1�A standby current


Voltage supply range: 1.7v to 5.5V

Maximum voltage supply: 6V

Memory size: 16Kbyte

 Memory interface type: IIC or I2C

Clock frequency: 400kHz

Pin Description

Operating temperature range: -40? to 125?


Storage device

Used to increase flash memory of MCUs

Radio devices

Data logging and analytic
