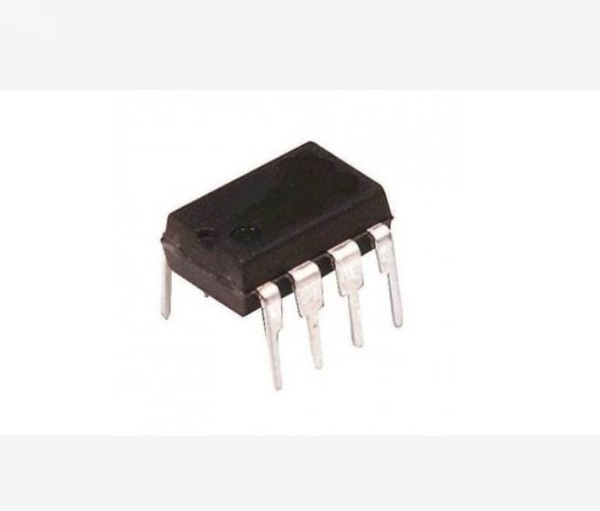

Product Details

• Product type: EEPROM memory IC
• IC number: 24LC04
• Number of pins: 8
• Mounting type: through hole
• Package type: PDIP-8
• Package contains: 1 x 24LC04 4 Kbit Serial I2C Bus EEPROM Memory IC

Features

Single voltage supply operation from 2.2V to 5.5V

16-byte page buffer

2 wire protocol (IIC/I2C) interface

Can be cascade with 8 similar devices

Schmitt trigger inputs for noise suppression

Output slope control to eliminate ground bounce

Write protocol pin for hardware and software data protection

400kHz clock frequency compatibility

Maximum 5 ms page write time

Typical 3ms write cycle time with auto-erase function

Hardware write-protect

Self-timed erased/write cycle

More than 1M read/write cycles

Maximum 1�A standby current

Specification

Voltage supply range: 1.7v to 5.5V

Maximum voltage supply: 6V

Memory size: 4Kbyte

Memory interface type: IIC or I2C

Clock frequency: 400kHz

Operating temperature range: -40? to 125?

Application

Storage device

Used to increase flash memory of MCUs

Radio devices

Data logging and analytic
