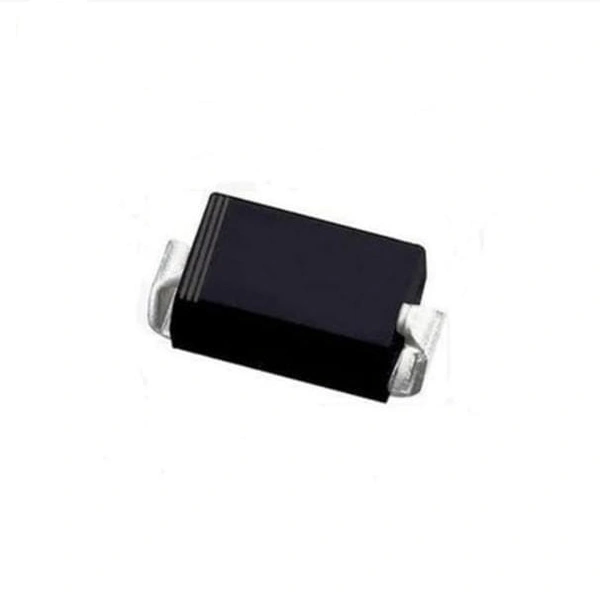

20pc US1M Ultra Fast Diode DO-214AC Package

Product Details

• Product type: US1M SMD diode
• Mounting type: SMD or SMT
• Terminals: 2
• Dimension: 2.8mm x 1.9mm
• Weight: approx 0.06g
• Package contains: 20 x  US1M Ultra Fast Diode DO-214AC Package

Features

Glass passivated device

Diffused junction

deally suitable for automatic assembly

Low forward voltage drop high current capability and low power loss

Surge overloading rating of 30A

Ultra-fast recovery time for high efficiency

Plastic case material

Electrical Specification

Peak repetitive reverse voltage: 1000V

Peak working voltage: 1000V

DC blocking voltage: 1000V

RMS Reverse voltage: 700V

Average rectified output current: 1A

Non-repetitive peak forward surge current: 25A

Forward voltage: 1.7V

Peak reverse current

At 25?: 5�A

At 100?: 100�A

Reverse recovery time: 75ns

Operating and storage temperature range: -65? to 150?

Mechanical Specification

Case: SMA DO-214AC package

Case material: molded plastic

Terminals: solder plated solderable

Polarity: cathode bank or cathode notch

Marking: type number and date code

UL flammability classification rating: 94V-0

Moisture sensitivity: level 1 per J-STD-020C
