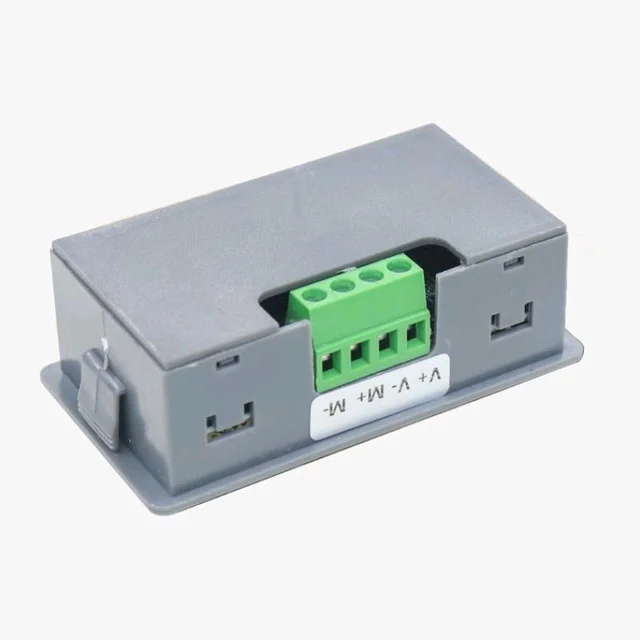

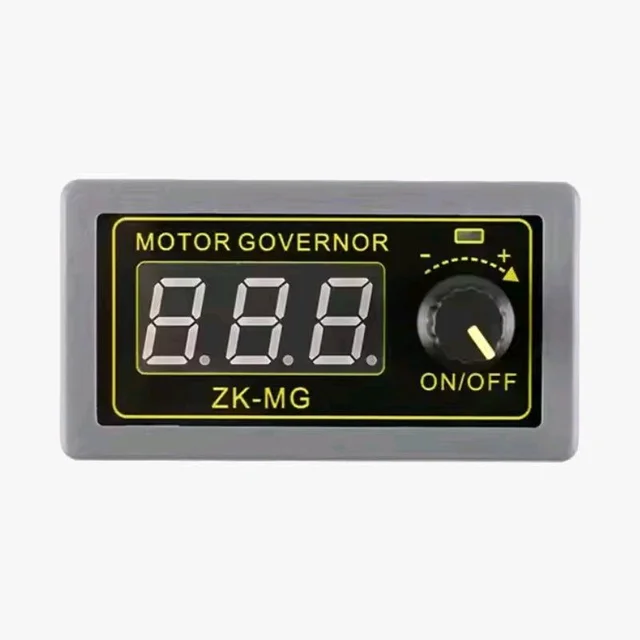

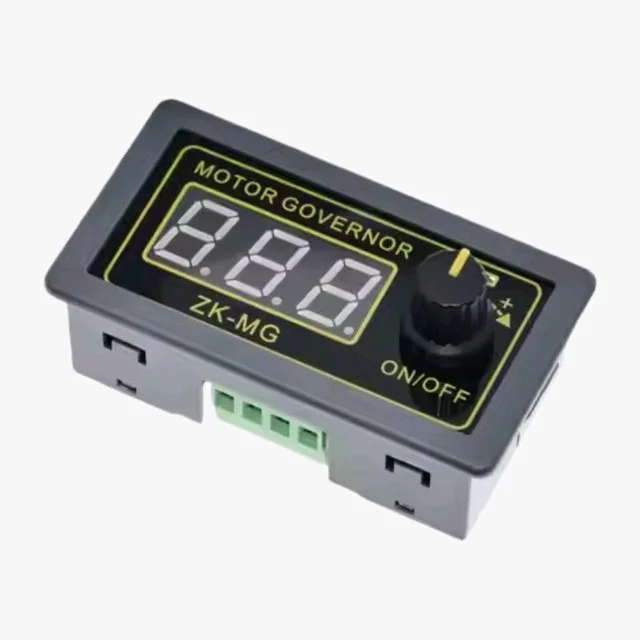

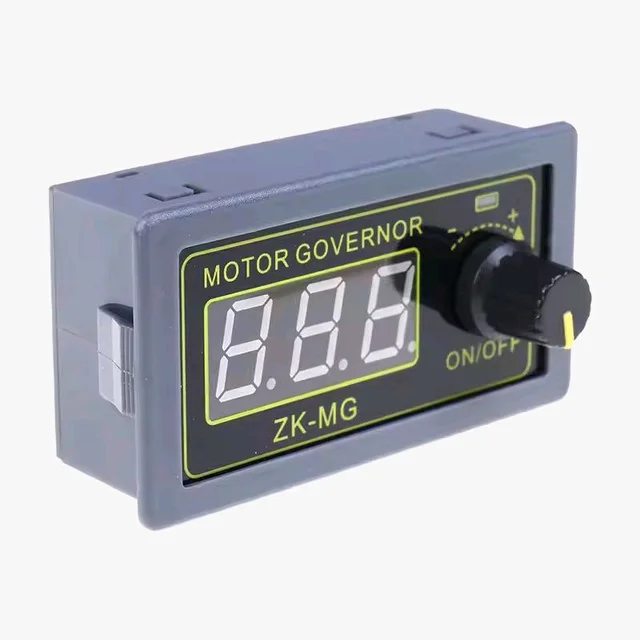

ZK-MG 5-30V 150W PWM Governor DC Motor Controller with Digital Display and Variable Rotary Switch Q11 C5

This controller is suitable for small motor-based projects, DIY automation systems, fan control, light dimming, and more. The module is also equipped with protection features such as reverse connection protection and short-circuit protection, enhancing its safety and usability.

Features of ZK-MG 5-30V 150W PWM Motor Controller:

Wide operating voltage range from 5V to 30V DC

Can handle output power up to 150W

Digital 3-digit LED display for real-time voltage or duty cycle monitoring

Smooth and precise control with a rotary encoder knob

Operates at a fixed PWM frequency of 16KHz

Adjustable duty cycle from 0% to 100%

Built-in protection features include over-voltage, short-circuit, and reverse polarity protection

Compact and easy-to-install design suitable for DIY or industrial control setups

Specifications of ZK-MG 5-30V PWM Controller:

Input Voltage: 5V to 30V DC

Output Current: Up to 5A (Max)

Output Power: 150W (Maximum)

PWM Frequency: 16KHz

Duty Cycle Range: 0% to 100%

Display Type: 3-Digit LED

Control Interface: Rotary Encoder

Protection Features: Reverse polarity, short-circuit, over-voltage

Module Dimensions: Approx. 60mm x 33mm

Package Includes:

1 x ZK-MG 5-30V 150W PWM DC Motor Speed Controller with Digital Display and Rotary Switch
