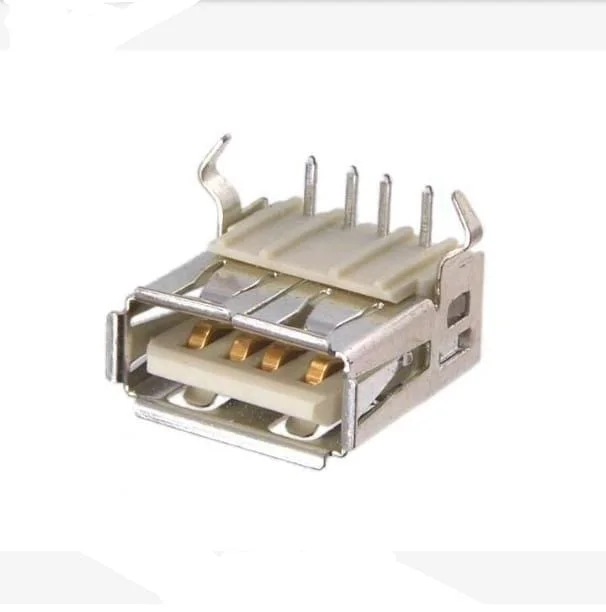

USB Type A Female Port - r175

₹ 22

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep


  • Product:  USB Type A Female Port,
  • Voltage rating:  30 VAC(rms),
  • Current rating: 1 Amp,
  • Contact resistance: 30 m Max.,
  • Insulation resistance: 1000 M Min.,
  • Temperature storage: -40C to +60C,


Specification


Voltage rating: 30 VAC(rms)

Current rating:  1 Amp

Contact resistance:  30 m Max.

Insulation resistance:  1000 M Min.

Temperature storage:  -40C to +60C

Durability:  1500 cycles

Mating force:  35N Max.

Unmuting force:  2.9N Min.

Dielectric strength:  750 VAC Min.

Features

Raised design provides easy insertion and withdrawal and guarantees even high reliability.

The design of three certain restraints provides a robustious structure.

Gold plated contacts to ensure low contact resistance.

All materials are UL 94V-0 grade fire retardant.
