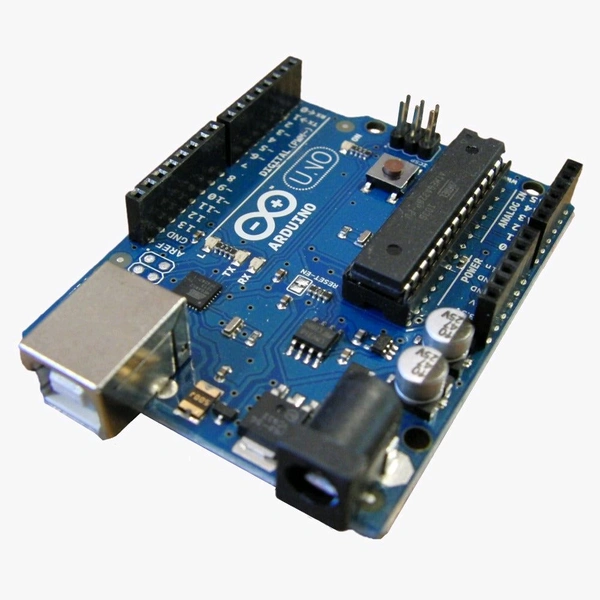

Uno R3 ATmega328P Compatible Development Board- Compatible with Arduino - DIP Version (Without Cable) Q2 C1

It includes a LED that can be useful in multiple applications or to test the board functionality. A voltage regulator, better to say an LDO, is available inside this development board to make this Arduino compatible for a wide range of input voltages. The application is very easy, just upload the code, and run.

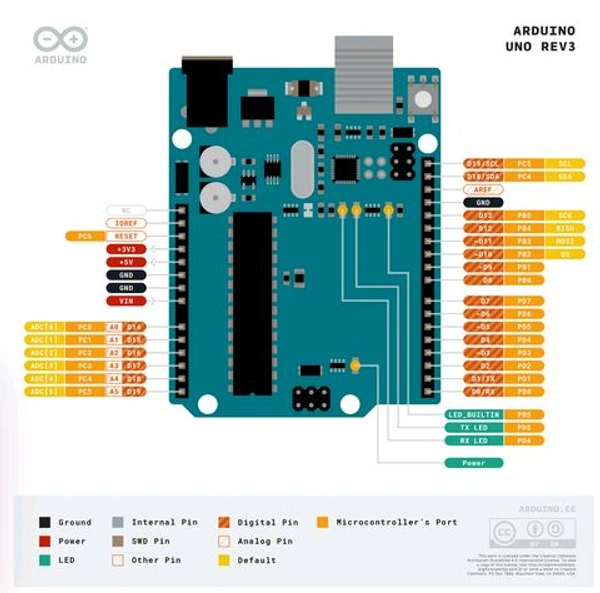

UNO R3 Pinout

Arduino UNO R3 Arduino 328 P

Package Contains

1x UNO R3 without the USB Cable.

Features:

Model Type: UNO Rev R3

Microcontroller Chip: ATmega328P

Operating Voltage (VDC): 5

Input Voltage (Recommended): 7-12V

Input Voltage (limit): 6-20V

Analog I/O Pins: 6

Digital I/O Pins: 14 (of which 6 provide PWM output)

PWM Digital I/O Pins: 6

DC Current per I/O Pin (mA): 40

DC Current for 3.3V Pin (mA): 50

Clock Speed: 16 MHz

SRAM (KB): 2

EEPROM: 1 KB (ATmega328)

Flash Memory: 32 KB

On Board LEDs: On/Off, L (PIN 13), TX, RX

Dimensions in mm (LxWxH): 75 x 54 x 12

UNO R3 Applications:

Embedded input output

Data capture

Motor control

Robotics

Small embedded application and developments

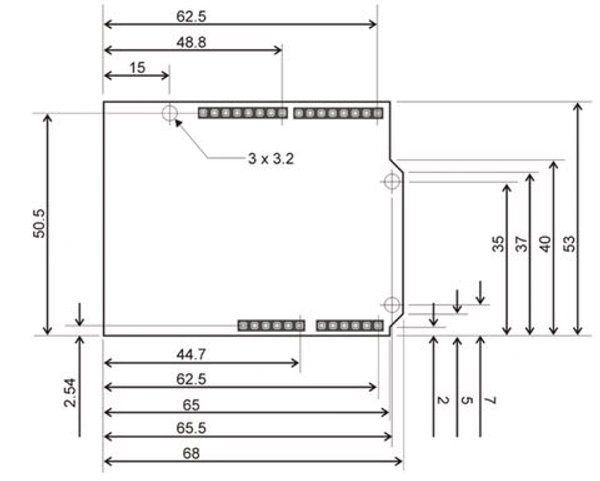

UNO R3 Dimension and footprint:

Arduino UNO R3 DIP



Additional Resources:

Atmega328P Datasheet
