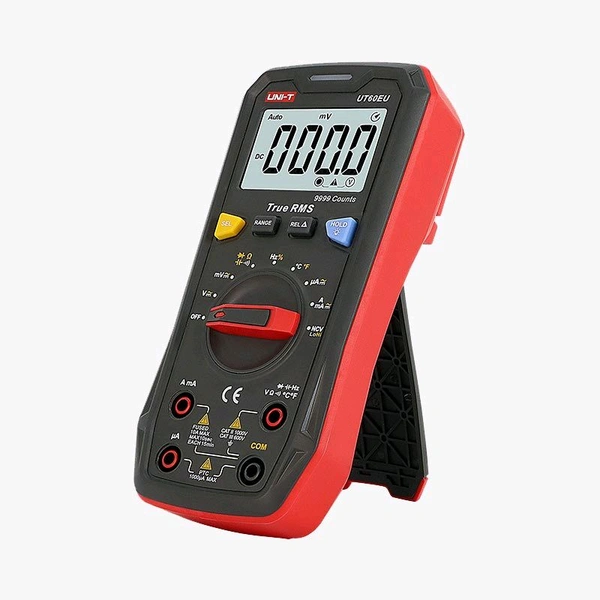

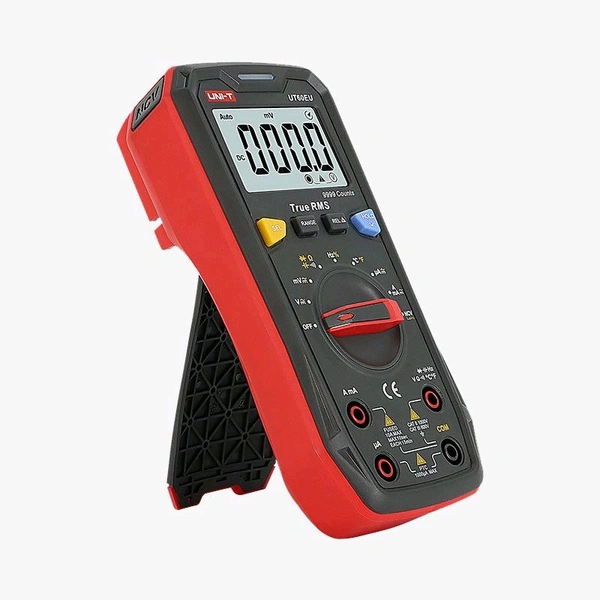

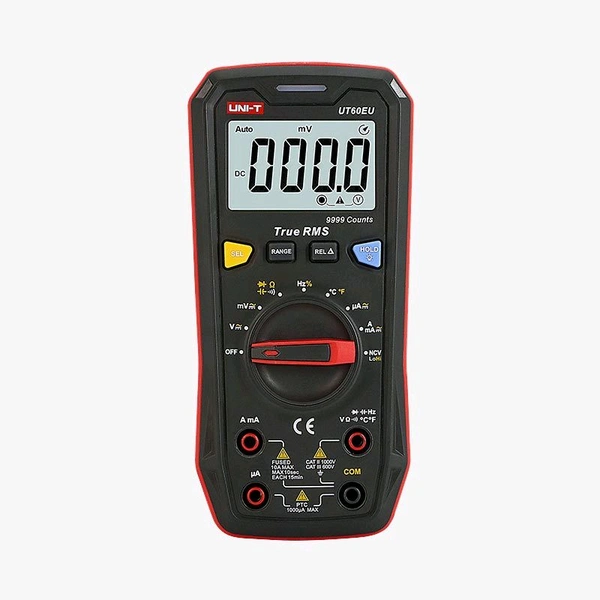

UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1
UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1
UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1
UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1

UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter Q15 C1

₹ 3,450

₹ 3,800

9%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

Features:
True-RMS: Ensures accurate measurements even for non-sinusoidal waveforms.
High Resolution: The 9999-count display provides precise and detailed results.
Bluetooth Connectivity: Allows convenient wireless data transfer, enhancing efficiency.
Duty Cycle Measurement: Measures duty cycles ranging from 0.1% to 99.9%.
Diode/Continuity Test: Enables quick checks on diodes and verifies electrical continuity.
Temperature Measurement: Measures temperatures between -40℃ to 1000℃ (-40°F to 1832°F).
Non-contact Voltage Detection: Ensures user safety by detecting AC voltage without direct contact.
Analog Bar and Data Hold: Visualizes measurements with an analog bar and supports data hold.
Backlight with Relative Mode: Enhances visibility in low-light conditions, and relative mode aids in comparing measurements.
Auto/Manual Range Selection: Automatically selects the appropriate measurement range or allows manual selection.
Low Battery Indication: Alerts when the battery voltage drops below 3.6V.
Three-Color LED Light Indicator: Provides quick visual cues for various functions.
High Safety Standards: Complies with CAT II 1000V/CAT III 600V safety ratings.
Click Here for Data Sheet!
Specifications:
Specifications Range UT60EU
DC Voltage 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V ±(0.5%+3)
AC Voltage 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V ±(0.8%+3)
DC Current 999.9μA / 999.9mA / 9.999A / 10A ±(0.8%+3)
AC Current 999.9μA / 999.9mA / 9.999A / 10A ±(1.0%+3)
Resistance 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ ±(0.8%+2)
Capacitor 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 9.99mF (UT60EU/UT60BT) / 99.9mF (UT60S) ±(4.0%+5)
Frequency 99.99Hz - 9.999MHz ±(0.1%+5)
Duty Cycle 0.1 - 99.9% ±(3%+5)
Temperature -40℃ - 1000℃ / -40°F - 1832°F ±4℃ / ±5℉
Display Count 9999 9999
Auto Range
√
REL
√
NCV
√
Diode
√
Continuity Test
√
Acousto-optic Indication (NCV/continuity/battery power)
√
Low Battery Indication ≤3.6V √
Data Hold
√
Auto Power Off 15Min √
Operation Temperature 0℃ - 40℃
Safety CAT II 1000V / CAT III 600V


Package Includes:
Test Leads, Digital Multimeter and User Manual.
