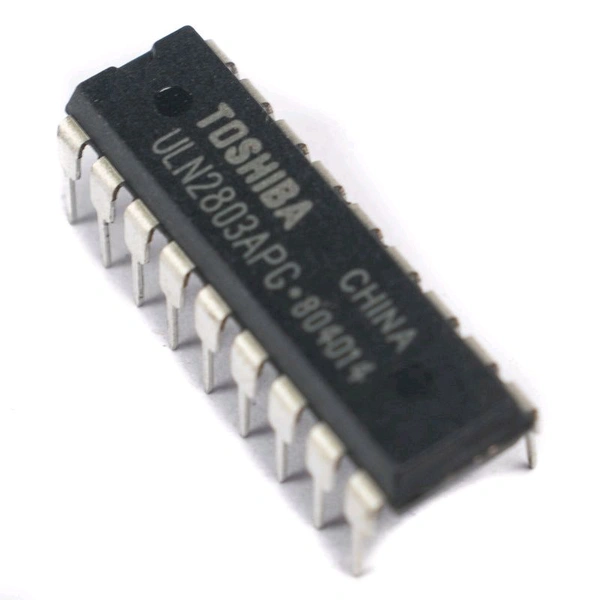

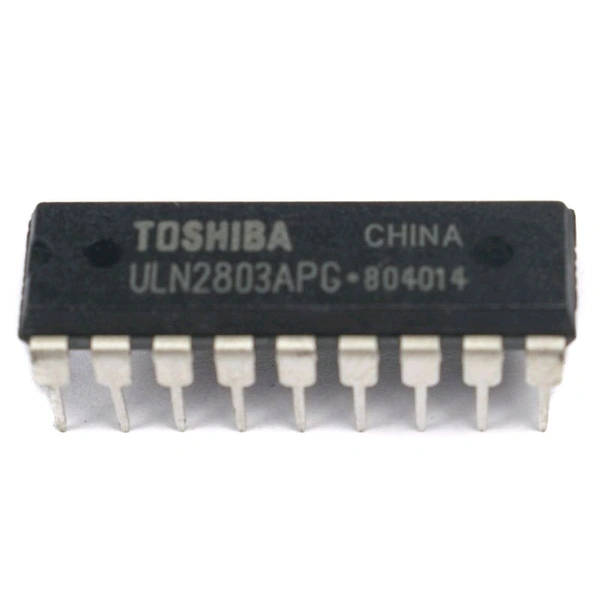

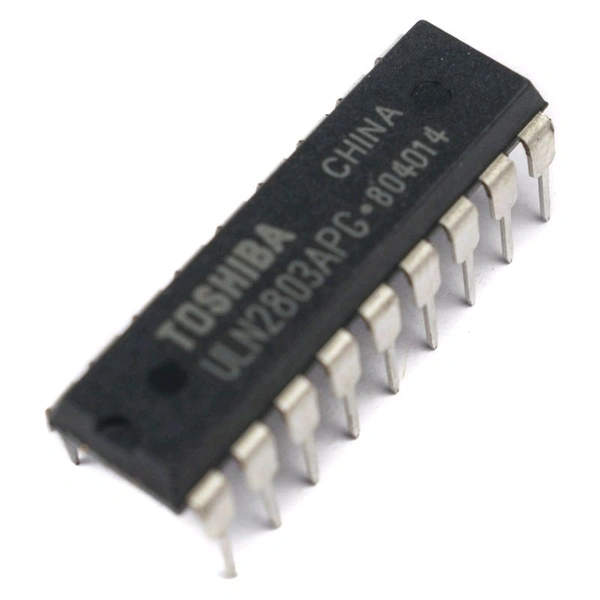

ULN2803 Eight Darlington Array DIP-18 Package H13 A5

This is ULN2803 Eight Darlington Array (DIP) having a high-voltage, high-current Darlington drivers comprised of eight NPN Darlington pairs.

Features:

Output current (single output) 500 mA (max)

High sustaining voltage output 50 V (min)

Output clamp diodes

Inputs compatible with various types of logic.

 Package Type−APG : DIP−18pin

Specifications

Part Number ULN2803

Type Darlington Array

Package DIP-18

Output current 500mA

voltage output 50V

Power Dissipation 1.47 W

Operating Ambient Temperature Range -40 to +85 °C
