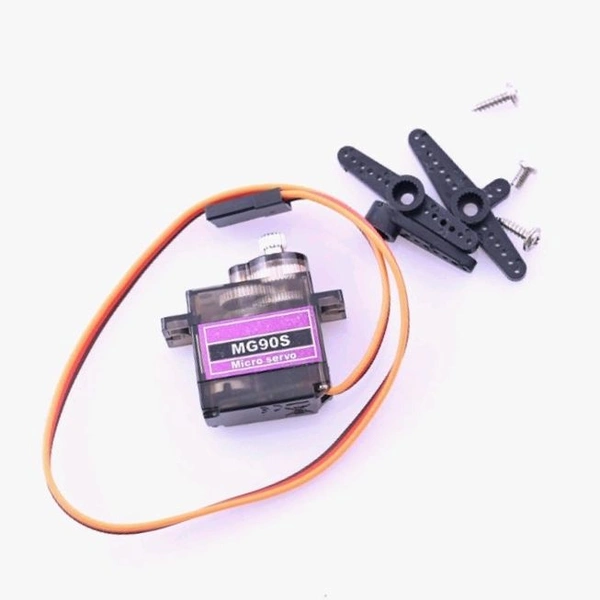

Tower Pro MG90S Servo Motor with Metal Gear Q11 C2

It weighs about 13.4 grams only making this a lightweight servo motor that can be used in different applications where the weight is a crucial factor. The metal gear provides ruggedness for the motor and increases the life time of the motor since the gears will not wear out.

MG90S Servo Motor Quick Features and Specification:

Features :-

Accurate and fast positioning

Instant control response

Constant torque during the servo travel range

Proper holding power useful for different applications



Specification:-

Model : MG90S

Weight(gm) : 13.4

Operating Voltage (VDC) : 4.8 ~ 6.6

Operating Speed @4.8V : 0.10sec/60°

Operating Speed @6.6V : 0.08sec/60°

Stall Torque @ 4.8V (Kg-Cm) : 1.8

Stall Torque @6.6V (Kg-Cm) : 2.2

Operating Temperature (°C) : 0 to 55

Dead Band Width ( μs) : 1

Rotational Degree : 180º

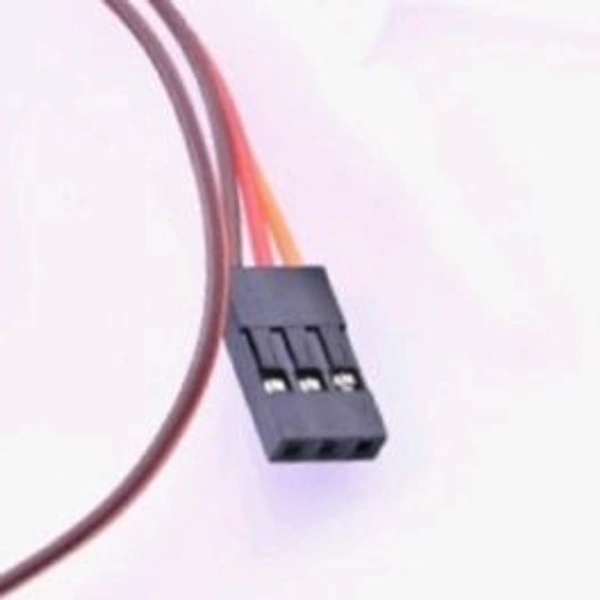

Servo Plug : JR

Cable Length (cm) : 25

Length (mm) : 12.4

Width (mm) : 22.8

Height (mm) : 32.5



MG90S Applications:

RC Cars

RC Copters

Small Drones

RC Boats

Robotics

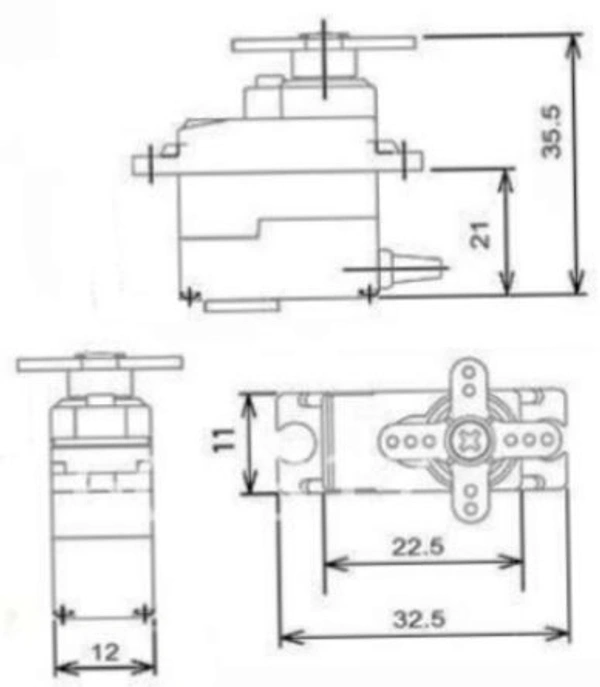

MG90S Dimension and footprint:

Tower Pro MG90S Servo Motor with Metal Gear

Additional Resources:

MG90S Datasheet
