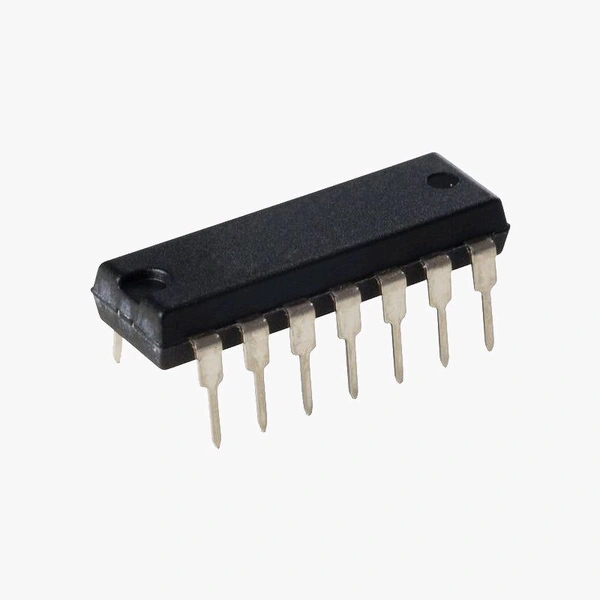

TL074 Low Noise JFET Quad Op-Amp IC - DIP-14 Package Q8 C2

TL074 Op Amp Features:

Low Noise Performance: Ensures minimal distortion, ideal for audio applications.

JFET Input Stage: Provides high input impedance and low bias current.

Wide Power Supply Range: Operates from ±3V to ±18V or a single supply of 6V to 36V.

Low Power Consumption: Suitable for battery-powered devices.

High Slew Rate: Fast response to rapid signal changes.

Unity-Gain Stability: Stable performance in a wide range of circuit configurations.

Quad Amplifiers: Four independent op-amps in a single IC.

TL074 IC Specifications:

Input Offset Voltage: Typically 3mV

Input Bias Current: Typically 30pA

Gain Bandwidth Product: 3MHz

Slew Rate: 13V/µs

Power Supply Voltage Range: ±3V to ±18V (Dual Supply) or 6V to 36V (Single Supply)

Package Type: DIP-14

Temperature Range: 0°C to +70°C

Pin Configuration (DIP-14):

Output 1

Inverting Input 1

Non-Inverting Input 1

VCC- (Ground/Negative Supply)

Non-Inverting Input 2

Inverting Input 2

Output 2

Output 3

Inverting Input 3

Non-Inverting Input 3

VCC+ (Positive Supply)

Non-Inverting Input 4

Inverting Input 4

Output 4

Package Includes:

1 x TL074 Low Noise JFET Quad Op-Amp IC - DIP-14 Package
