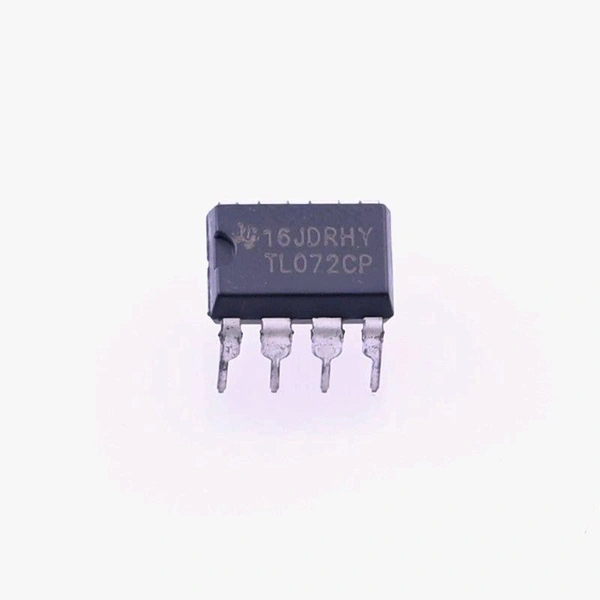

TL072 - Low Noise Dual JFET Op-Amp IC Q8 C2

TL072 - Low Noise Dual JFET Op-Amp IC Q8 C2

Name: TL072 - Low Noise Dual JFET Op-Amp IC Q8 C2
SKU: SKU-6180
Price: 34 INR
Availability: InStock

₹ 34

₹ 35

3%

Delivery Options

Get delivery at your doorstep

The TL072 is an Op-Amp IC that has a JFET input. Having a JFET at the input side will increase the bandwidth gain and reduce the input noise of the IC. Hence TL072 IC is commonly used in noise sensitive applications. Along with that, the Op-Amp also has a high input impedance and a low bias current, making it an ideal choice for audio pre-amplifiers.

TL072 Product Description of the TL072 - Low Noise Dual JFET Op-Amp IC

TL072

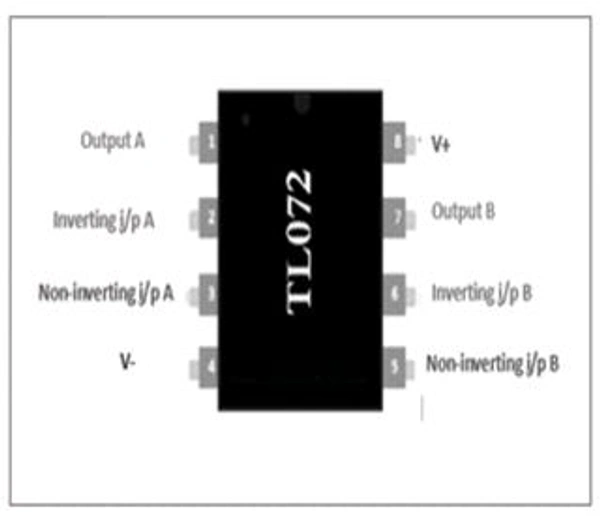

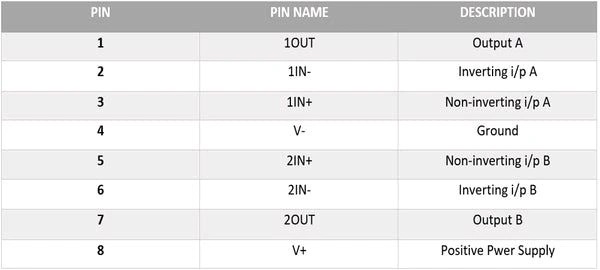

PIN DESCRIPTION

TL072-Low-Noise-Dual-JFET-Op-Amp-IC

Features of TL072 - Low Noise Dual JFET Op-Amp IC

Low Noise

High slew rate: 16 V/µs (typ)

High input impedance JFET input stage

Output short-circuit protection

Wide Common-Mode and Differential Voltage Ranges

Internal Frequency Compensation

Input Offset Voltage: 3 mV

Input Offset Current: 5 pA

Input Bias Current: 65 pA

Common Mode Rejection: 100 dB

Supply Current: 1.4 mA / Amplifier

Supply Voltage: ±3V to ±15V

Operating temperature: 0 to 70 °C

Package Contents

1× TL072 - Low Noise Dual JFET Op-Amp IC
