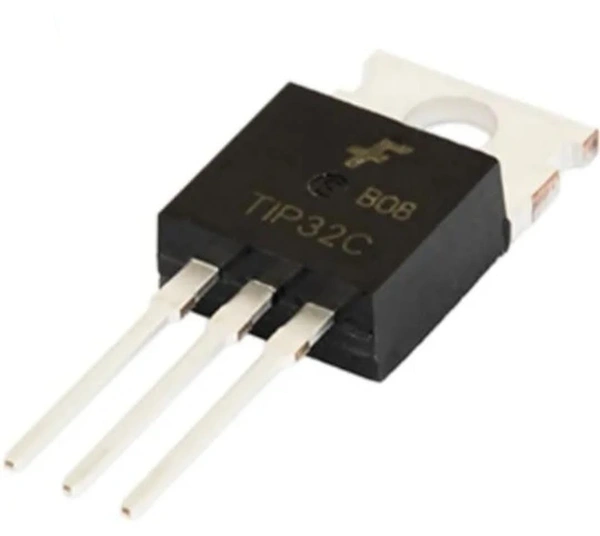

TIP32C 100V 3A PNP Power Transistor

Product details

• IC: TIP32c
• Polarity: PNP
• Transistor type: BJT single power
• Pin counts: 3
• Package: TO-220
• Manufacturer: Fairchild
• Package contains: 1 x TIP32c transistor IC

TIP32C is a general purpose PNP transistor based on silicon epitaxial. It finds the application in general purpose amplification and switching. This transistor has fast switching time and very low saturation voltage that results in less switching and conduction losses.

Specification :-

Collector-emitter voltage: -100V

Collector-base voltage: -100V

Emitter-base voltage: -5

Collector current: -3A

Base current: -3A

Collector dissipation: 40W

Transition frequency: 3MHz

DC current gain hFE: 10 to 50

Working temperature: -65 to 150 �C
