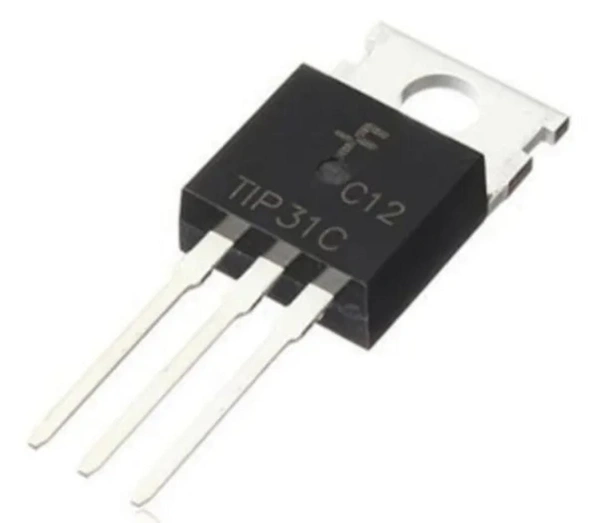

TIP31C 100v 3A NPN Bipolar power Transistor
₹ 22 / Piece
Delivery Options
Get delivery at your doorstep
Product details:
- Product: NPN Bipolar power transistor
- IC number: TIP31C
- Pin counts: 3
- Package type: TO-220
- Package contains: 1 x TIP31C amplifier transistor
TIP31c is an NPN bipolar power transistor with a TO-220 plastic transistor case. This amplifier finds application in general amplification and switching circuit application. Like another transistor it has 3 pins emitter base and collector.
Specification
Collector-emitter voltage: 100V
Collector-base voltage: 100V
Emitter-base voltage: 5V
Collector current: 3A
Transition frequency: 3MHz
Power dissipation: 40W
Operating temperature: -65 to 150 �C
Application
Amplification
Switching
Signal processing
Speed control of DC motor
Power management
Relay drivers
PWM application
