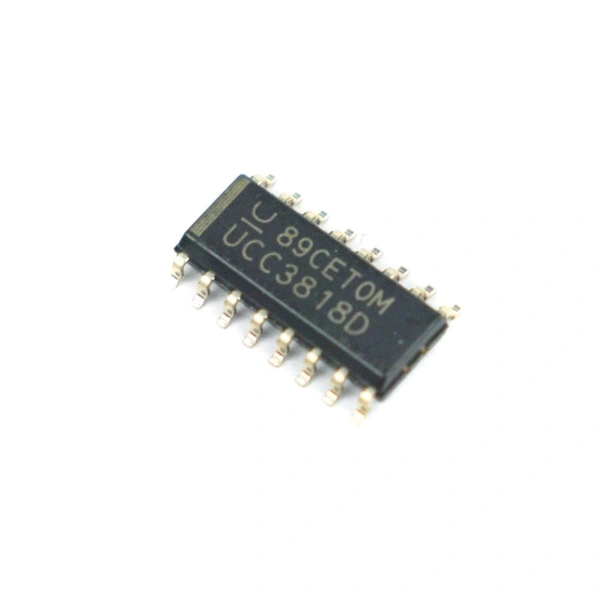

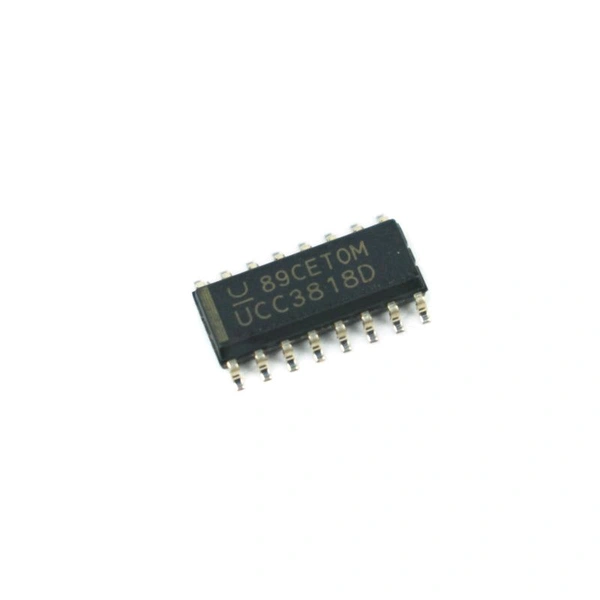

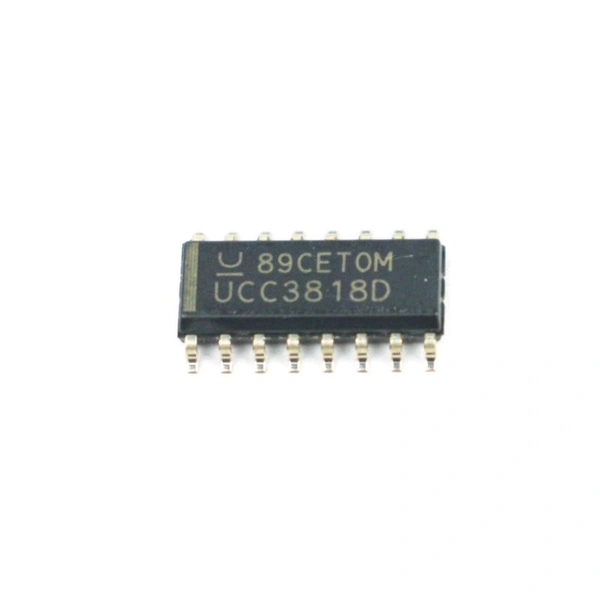

Texas Instruments UCC3818 BiCMOS Power Factor Pregulator IC (16 Pin) H13 A5

The UCC3818 functions as an active power factor-corrected pre-regulator. The controller achieves a near-unity power factor by shaping the AC input line current waveform to correspond to that of the AC input line voltage. Average current mode control maintains stable, low distortion sinusoidal line current.

It is designed by Texas Instruments using the BiCMOS technology. The BiCMOS technology combines the strengths of two different process technologies into a single chip: Bipolar transistors offer high speed and gain, which are critical for high-frequency analog sections, whereas CMOS technology excels in constructing simple, low-power logic gates.

Features

Controls Boost Preregulator to Near-Unity Power Factor

Limits Line Distortion, Over-Voltage Protection

Improved Noise Immunity

Low-Power BiCMOS Operation

Applications:

PC Power Supply

Regular Consumer Electronics

Lighting solutions

Industrial Power Supplies

For more information, refer to UCC3818 Datasheet

Specification

Model UCC3818

Brand Texas Instruments

Supply Voltage 18V

Supply Current 20mA

Gate Drive Current 1.2A

Power Dissipation 1W

Storage Temperature -65°C~150°C

Package SMD
