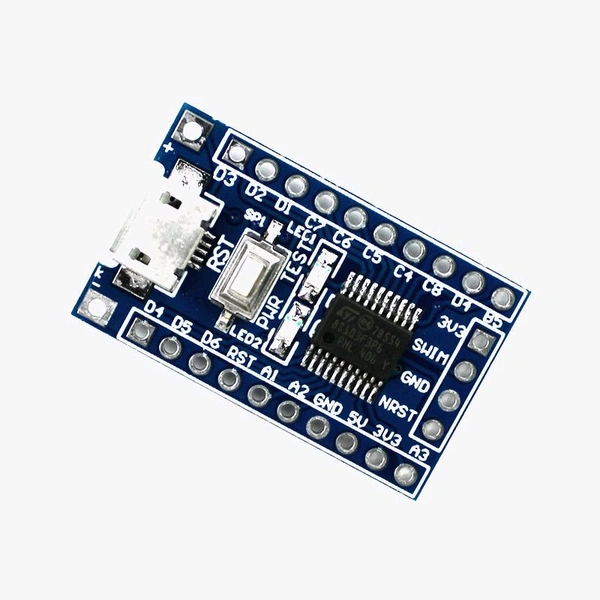

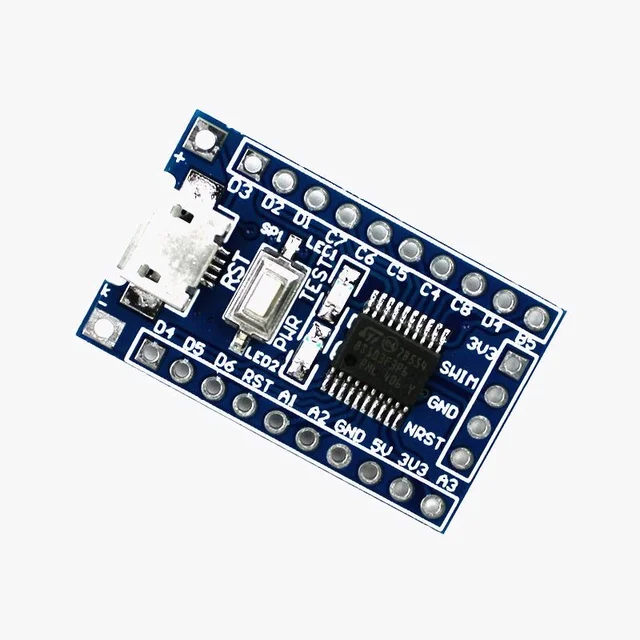

STM8S103F3P6 STM8 Development Board Q2 C4

Featuring the STM8S103F3P6 chip directly on the board, you can easily connect and utilize its capabilities. The board is equipped with a convenient SWIM connector for programming purposes, allowing for seamless code uploading and debugging. Additionally, an on-board reset switch is available to provide easy system resets when needed.

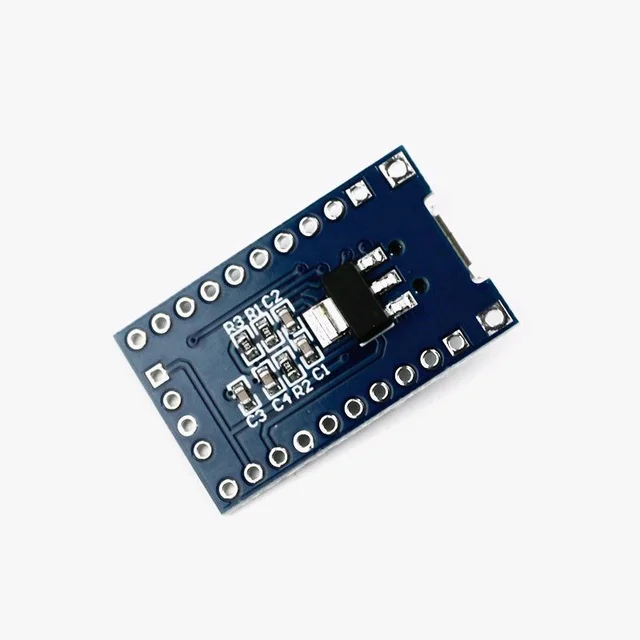

To ensure a stable and reliable power supply, the development board includes an AMS1117-3.3 voltage regulator that efficiently converts a 5V power source to a stable 3.3V output. You can conveniently power the board using the MicroUSB connector, providing a versatile and readily available power option.

All the necessary pin-outs are conveniently located on a 0.1" header, enabling straightforward connections with other components and peripherals. Furthermore, the board offers a soldering place for an external crystal oscillator, allowing you to enhance the accuracy and precision of your applications if desired.

With the STM8S103F3P6 Development Board, you can easily integrate the STM8S103F3P6 Microcontroller into your projects, taking advantage of its advanced features and unleashing your creativity in embedded computing designs.

Features

Used MCU STM8S103F3P6

On board, SWIM interface and reset button

Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V

Power light and the Demo indicator light

Leads all the pins and has detailed label for the Pins

Support SWIM debug mode

Package Includes:

1 x STM8S103F3P6 STM8 Development Board
