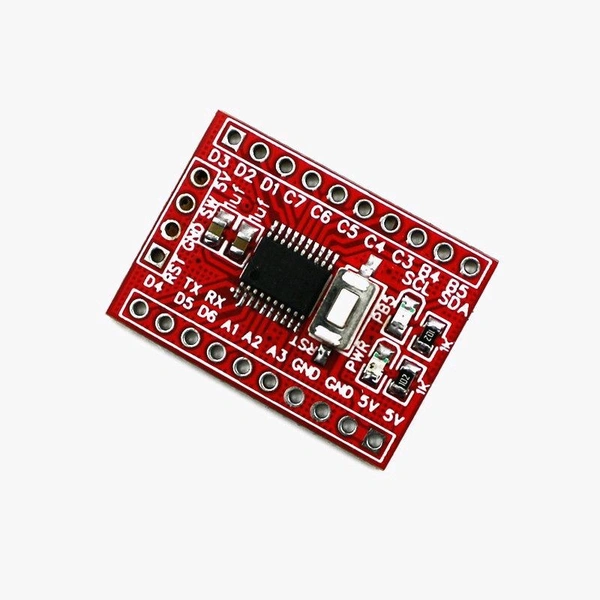

STM8S003F3P6 System Board STM8S003F3 STM8S STM8 development Q2 C4

This mini development board uses 5V input through pins and the PWR LED immediately notify the power availability status. The RESET Button can be used for resetting the microcontroller unit and the LED that is connected on the PB5 of the microcontroller unit can be configured using firmware by the user, making it easy to test.

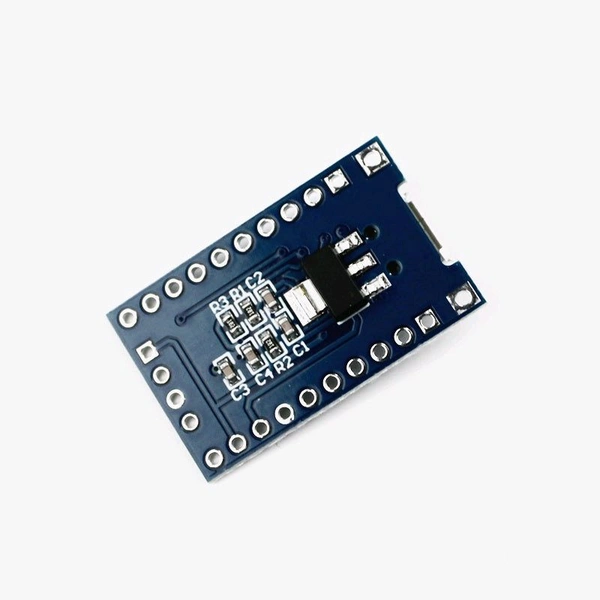

However, the programming interface is made in the top side of the board and available separately where the RST, GND, SW and 5V connection is available. Clear identification of the board pinout is useful for fast interfacing and identification of the pins. I2C lines require pull-up resistors. This board enables 4.7k pull up on both I2C lines SDA and SCL, connected in the bottom of this board.

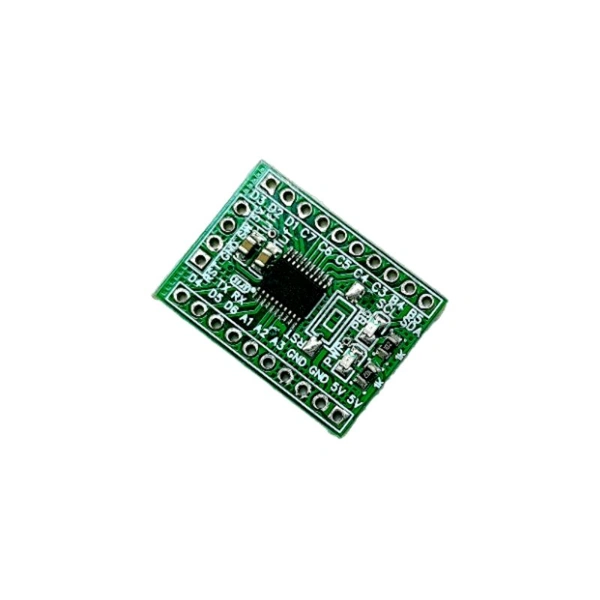

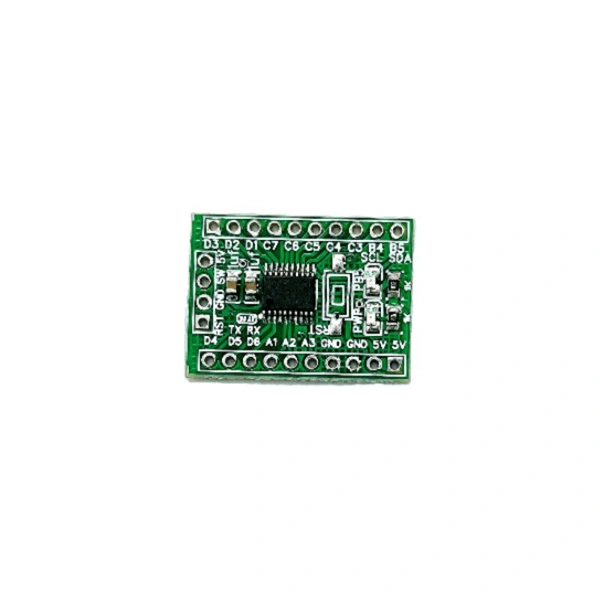

Note: Color of Product may be differ from the picture shown here.

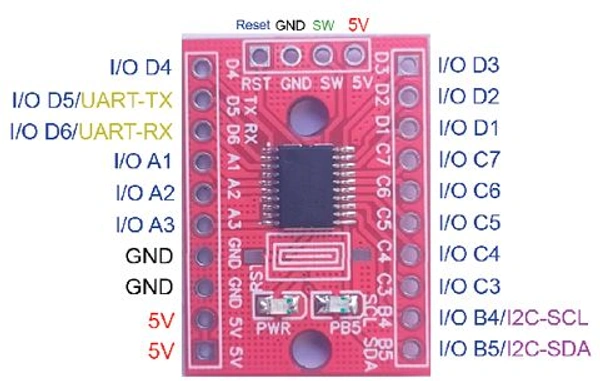

STM8S003F3P6 Development Board pinout:

STM8-Development-Board-Minimum-System-Board

STM8S003F3P6 Development Board Specifications:

Available controller STM8S003F3P6

On board RESET Switch available

54” pin spacing.

5V operation voltage that is directly connected with mcu VCC

Power LED and user configurable LED is available.

High quality PCB

7k Pull up on I2C lines available.

STM8S003F3P6 Development Board Applications:

Development Board or Programming board for STM8S

Driver Board for I2C based Sensors

Data logging and Data acquisition

Analog Sensing

Small control related application.

STM8S003F3P6 Development Board Dimension and footprint:

STM8-Development-Board-Minimum-System-Board

Example Projects on STM8S003F3P6 Development Board:

Getting started with STM8S

Additional Resources:

STM8S003F3P6 Datasheet



Package Contains

1x STM8S003F3P6 Development Board
