ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer Q2 C4ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer Q2 C4
ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer Q2 C4
ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer Q2 C4

ST-Link V2 Mini STM8 STM32 Simulator Downloader Programmer Q2 C4

₹ 280

₹ 360

22%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

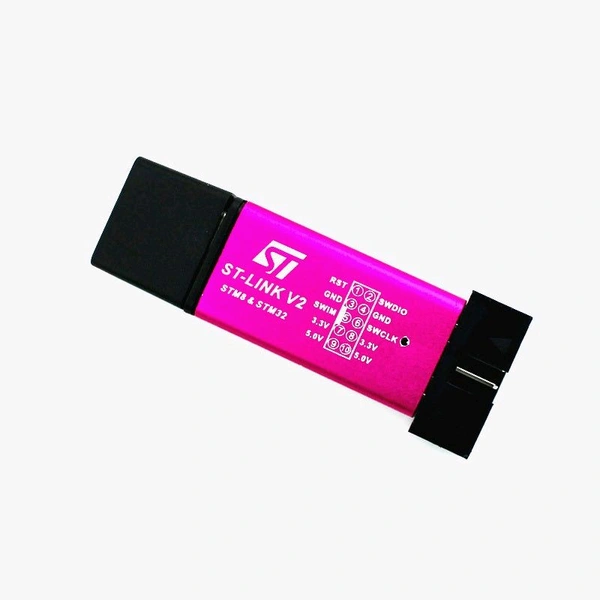

This is a Mini ST-LINK/V2 on a small single board. It is an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32 microcontrollers from ST Microelectronics. It is a toned down version of ST link V2 In line programmer/ debugger for STM8 and STM32 microcontrollers. It has USB 2.0 to connect to your PC and SWIM/SSD interface for communication with microcontrollers. It supports both 3.3V and 5V to easily connect the MCU. The U disk aluminum housing protects the simulator from static electricity and wear and tear due to rough use and provide protection against shocks, operational errors and malfunction.

Specifications

Onboard 500mA self-recovery fuse to avoid short circuit
Dual voltage output (3.3V/5V), easy for debugging and programming
Standard USB interface for direct connection to PC
Debugging: run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.
Programming: supports FLASH ROM, EEPROM, AFR, etc.
Automatically Upgradable firmware to support more devices
Supported software: ST-LINK Utility v2.0, STVD Version 4.2.1, STVP Version 3.2.3, IAR EWARM, IAR EWSTM8 Revision v1.30, KEIL RVMDK Revision v4.21, ATOLLIC
Supported devices: STM8 devices with SWIM interface and STM32 devices with SWD interface
Product Description

As is has a USB 2.0 port onboard so you can just plug it in the PC and download the programming or debugging software you are planning to use and start working on it. Make sure you connect the correct pins from the output port to the Microcontroller you are using.

Package Contents

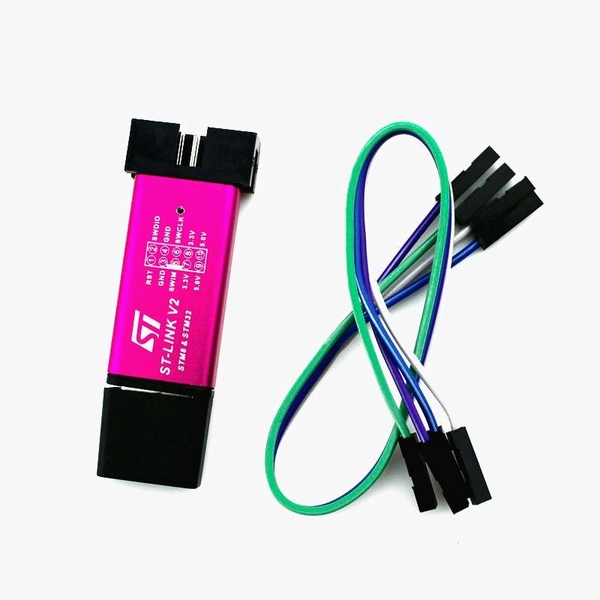

1× ST-Link V2 Mini STM8 STM32 Simulator Download Programmer

4× Cover DuPont Cable
