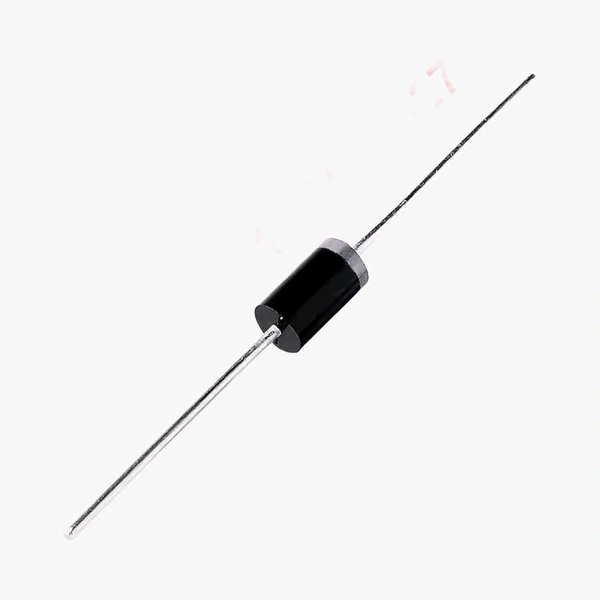

SR5100 100V 5A Schottky Barrier Rectifier Diode - DO-201AD Q1 C6

Name: SR5100 100V 5A Schottky Barrier Rectifier Diode - DO-201AD Q1 C6
SKU: SKU-6569
Price: 16 INR
Availability: InStock

₹ 16

₹ 20

20%

Delivery Options

Get delivery at your doorstep

The SR5100 is a high-efficiency Schottky barrier rectifier diode designed for use in low voltage, high-frequency inverters, freewheeling, and polarity protection applications. With a forward current capacity of 5A and a reverse voltage rating of 100V, this diode offers low forward voltage drop and fast switching capabilities. This makes it ideal for switching power supplies, DC-DC converters, and battery-powered systems.

Features of SR5100 Schottky Barrier Rectifier Diode:

Low forward voltage drop for reduced power loss

High surge current capability

Fast switching speed

High reliability and low thermal resistance

Suitable for freewheeling, polarity protection, and rectification applications

Specifications of SR5100 Schottky Barrier Rectifier Diode:

Model: SR5100

Diode Type: Schottky Barrier Rectifier

Peak Reverse Voltage (VR): 100V

Average Forward Current (IF): 5A

Maximum Surge Current: 150A

Forward Voltage Drop (VF): 0.85V (max) @ 5A

Reverse Recovery Time: Very Fast

Package Type: DO-201AD

Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × SR5100 100V 5A Schottky Barrier Rectifier Diode
