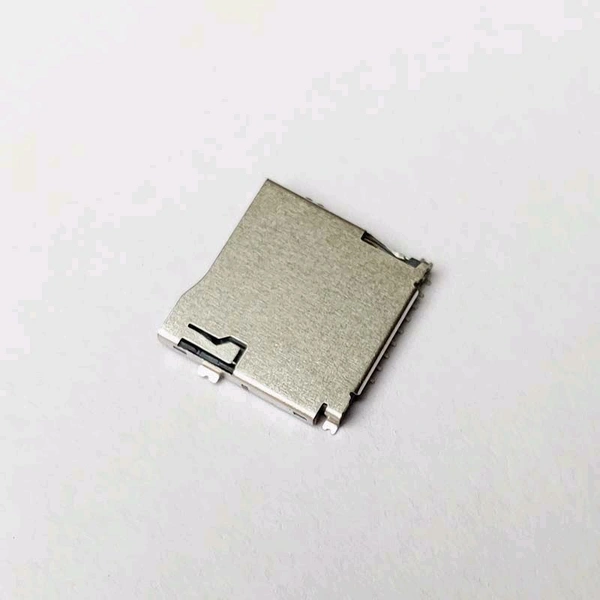

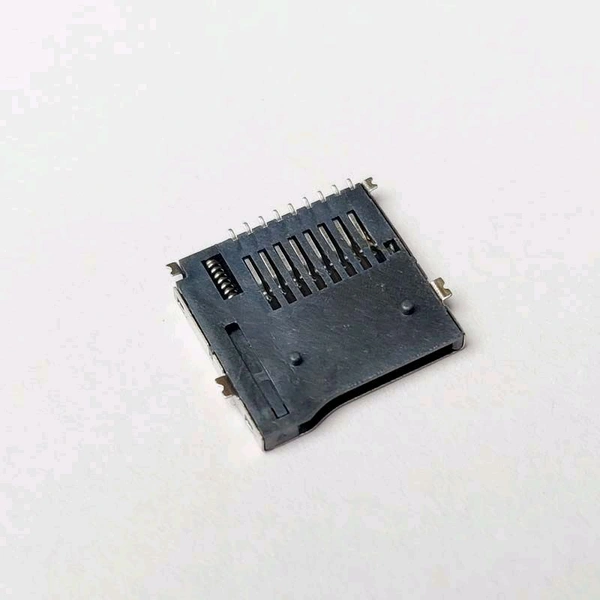

SD Card Socket 16 C6

SD cards can work in two modes: first SPI mode and second SD mode. Digital cameras and mobile phones use the SD mode to communicate but the development boards and microcontrollers use the SPI mode for communication which uses 4 pins Chip Select (CS), Data In (DI), Data Out (DO) and Clock (CLK). To power the device we need a 3.3V supply and GND pin. With these pins you can easily interface the SD card with your microcontroller board like Arduino and Raspberry Pi when you initiate communication via SPI. You can also get an SD Card Module if you want to use it without soldering and Rapid Prototyping.

Specifications

Easy to solder on PCB

Solid Construction for durability

Spring lock for keeping the card in place

Can be used with all electronic circuits

Reliable and cost effective

Product Description

SD Card Socket

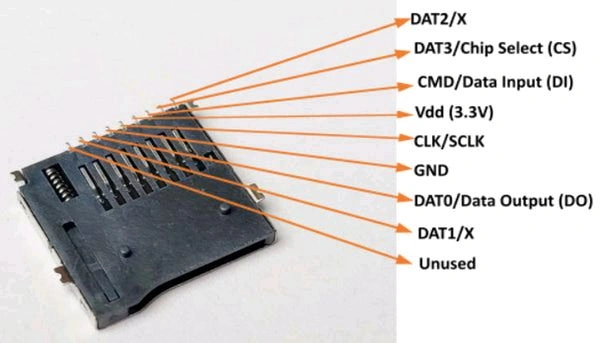

As there are two modes the SD card reader can be used so the pins as being shown in the image are explained for both the modes. DAT2, DAT3, CMD, DAT0, DAT1 are pins used for SD card mode and CS, DI, DO, SCLK are used by SPI and power supply is 3.3V and GND pins.

Dimensions

L*B = 15mm*15mm

Distance between Pins = 1.1mm

Additional Resources

SD Card Datasheet

Arduino Data logger

Non-Contact Wall Mount Digital Infrared Thermometer with SD Card Logging

Package Content

1× SD Card Socket
