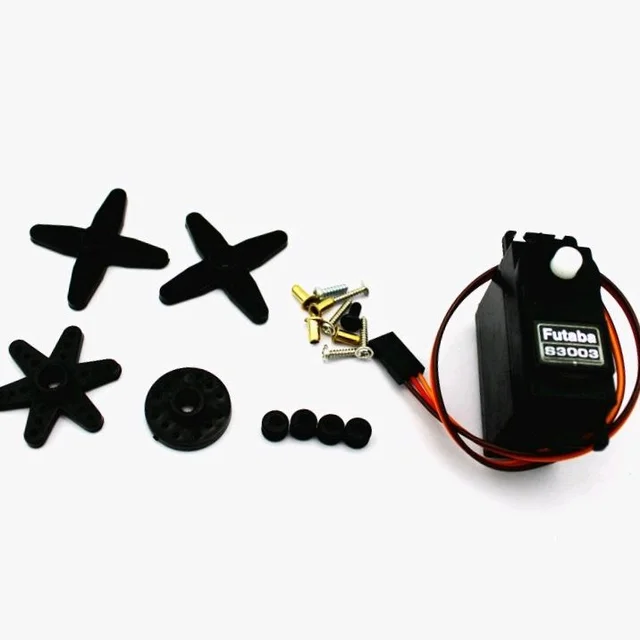

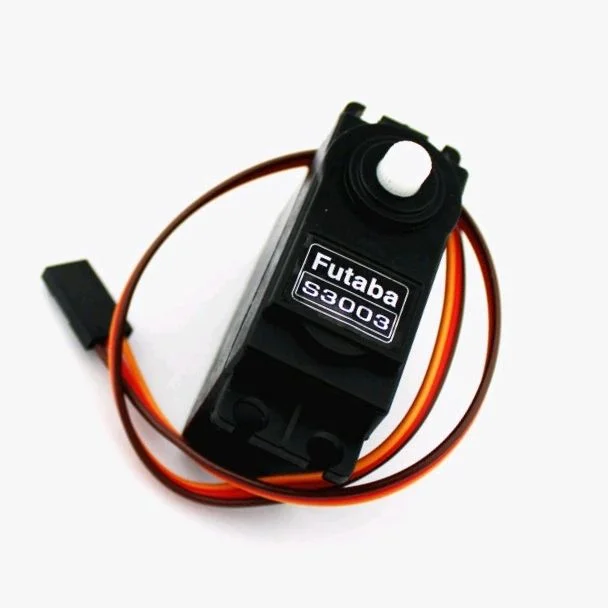

S3003 Servo Motor Futaba Q11 C2



Features:

Control System: +Pulse Width Control 1520usec Neutral

Required Pulse: 3-5 Volt Peak to Peak Square Wave

Operating Voltage: 4.8-6.0 Volts

Operating Temperature Range: -20 to +60 Degree C

Operating Speed (4.8V): 0.23sec/60 degrees at no load

Operating Speed (6.0V): 0.19sec/60 degrees at no load

Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)

Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)

Operating Angle: 45 Deg. one side pulse traveling 400usec

Continuous Rotation Modifiable: Yes

Direction: Counter Clockwise/Pulse Traveling 1520-1900usec

Current Drain (4.8V): 7.2mA/idle

Current Drain (6.0V): 8mA/idle

Motor Type: 3 Pole Ferrite

Potentiometer Drive: Indirect Drive

Bearing Type: Plastic Bearing

Gear Type: All Nylon Gears

Connector Wire Length: 12"

Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)

Weight: 1.3oz. (37.2g)



Application:

Futaba S3003 High torque Dual ball bearing Servo motors for robotics and industrial application, It provides 7Kgcm torque at 6V, Perfect Compatible with Hitec HS-311.
