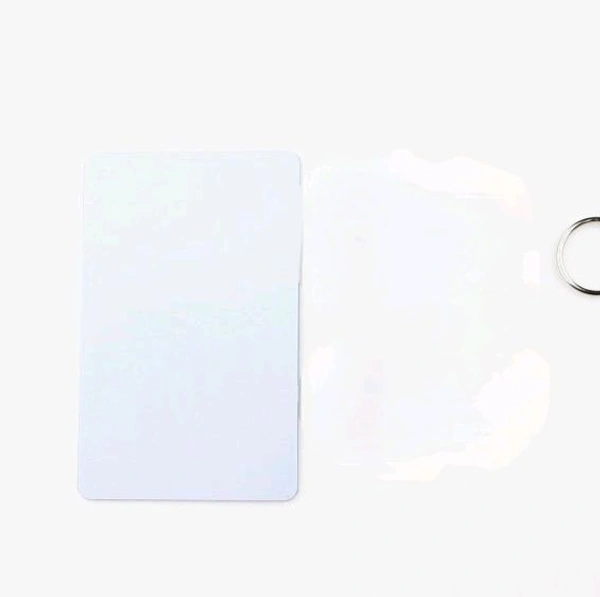

RFID Card / RFID Tag (13.56MHz RF range) Q5 C6

Whenever a transmitter comes into the range it will energize the coil present in the tag through Electromagnetic Induction. This energy powers the microchip inside which in turn sends a feedback response to the transmitter. The transmitter receives this unique feedback and identifies the Tag. The card is plain (white) on both side which enables a smooth printing of your logo and other details on the card. It can be used in Home Automation, Identification, Anti Theft Systems, Medical Tags etc.



Specifications:

Passive RFID Tag

32bit Unique ID

64-bit data stream (Header+ID+Data+Parity)

Reading Distance about 5 to 12 cm (depending upon the reader)

Dimensions: 54mm lengthx85.5mm widthx0.8 mm thickness

Card is blank, smooth and mildly flexible

Dimensions: 54x85.5x0.8 mm



Contents

1×White RFID Tag/Card
