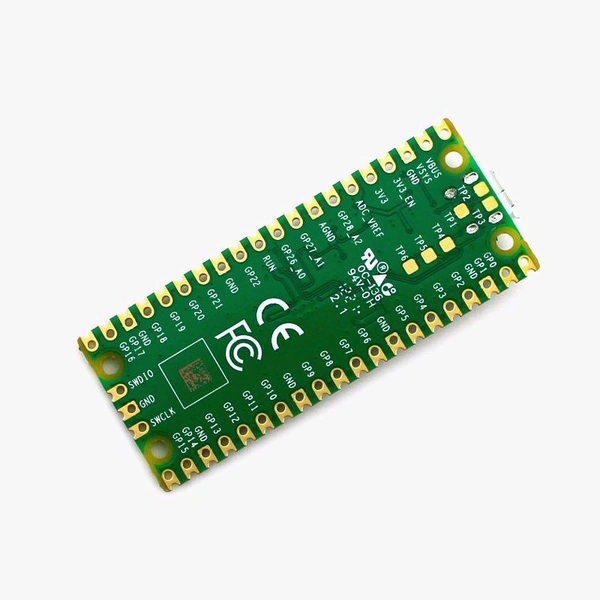

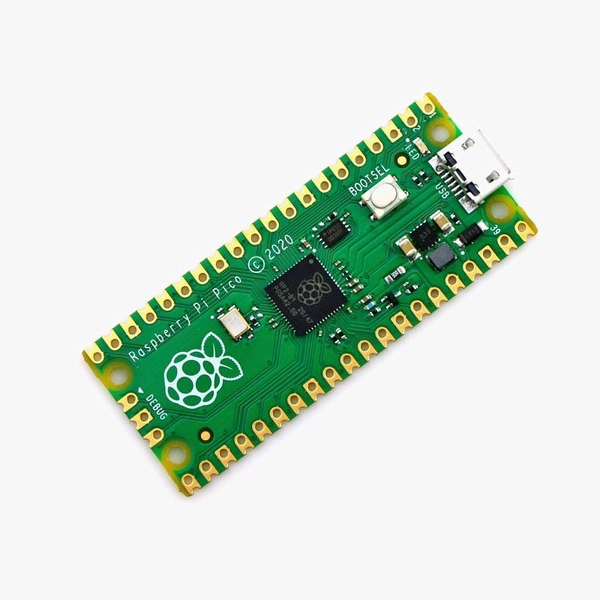

Raspberry Pi Pico - Original Q2 C2

Technical Specifications of PICO:

21 mm × 51 mm form factor

RP2040 microcontroller chip designed by Raspberry Pi in the UK

Dual-core Arm Cortex-M0+ processor, the flexible clock running up to 133 MHz

264KB on-chip SRAM

2MB onboard QSPI Flash

26 multifunction GPIO pins, including 3 analog inputs

2 × SPI controllers, 2 × UART, 16 × PWM channels, 2 × I2C controllers

1 × USB 1.1 controller and PHY, with host and device support

8 × Programmable I/O (PIO) state machines for custom peripheral support

Supported input power 1.8–5.5V DC

Operating temperature -20°C to +85°C

The castellated module allows soldering directly to carrier boards

Drag-and-drop programming using mass storage over USB

Low-power sleep and dormant modes

Accurate on-chip clock

Temperature sensor

Accelerated integer and floating-point libraries on-chip

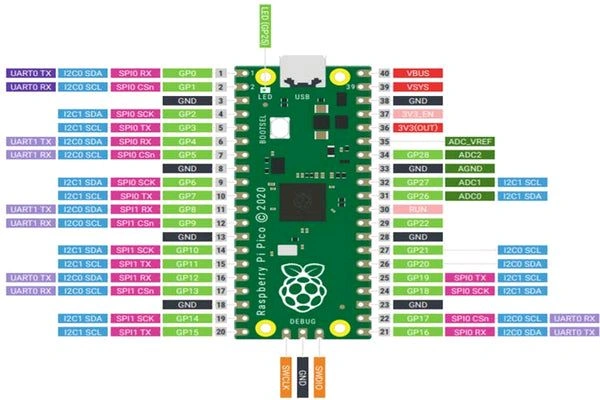

Raspberry Pi PICO Pinout:

Raspberry-Pi-PICO

Package Contains:

1 x Raspberry Pi Pico
