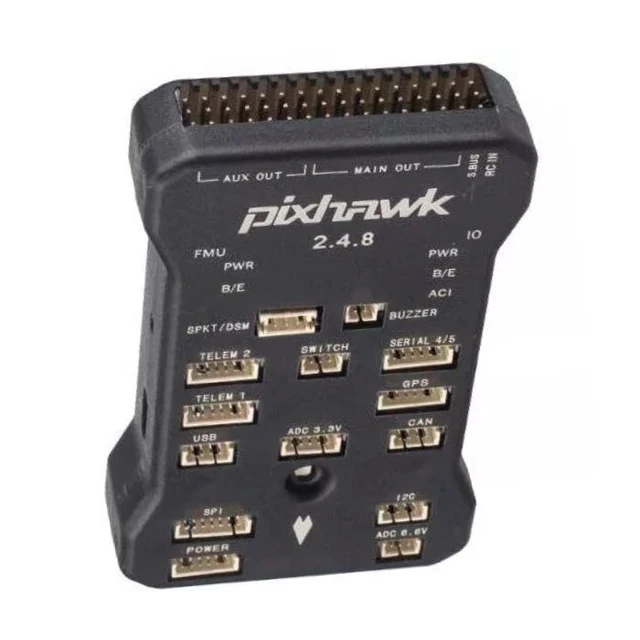

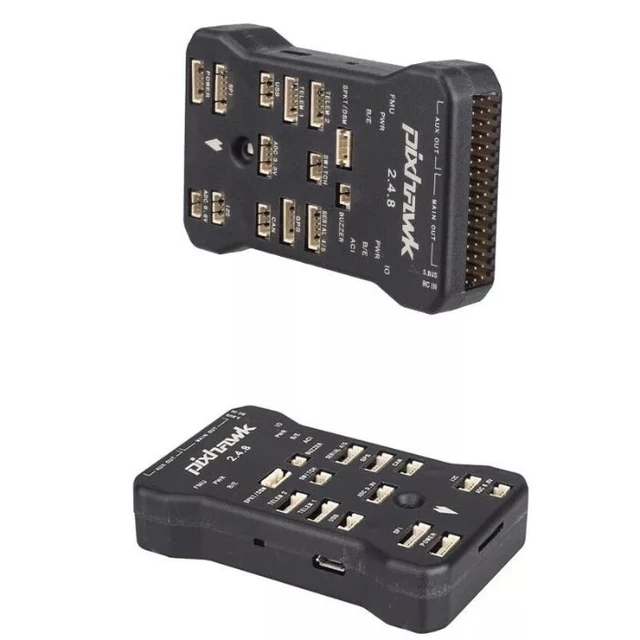

Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot C7 B4

The Pixhawk 2.4.8 Drone Flight Controller PX4 advanced 32-bit CortexM4 ARM high performance processor, can run RTOS NuttX real-time operating system Bus interface (UART, I2C, SPI, CAN) Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control Provide automatic and manual mode Provide redundant power input and fault transfer function.

It Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically.

The benefits of the Pixhawk 2.4.8 flight controller system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.

check out : Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board

Processor of Pixhawk Flight Controller:

32bit STM32F427 Cortex M4 core with FPU

168MHz

256KB RAM

2 MB Flash

32 bit STM32STMF100 failsafe co-processor

Sensor:

ST Micro L3GD20H 16 bit gyroscope

ST Micro LSM303D 14 bit accelerometer/magnetometer

Invensense MPU 6000 3-axis accelerometer/gyroscope

MEAS MS5611 barometer

Interfaces:

5x UART (serial ports), one high-power capable, 2x with HW flow control.

2x CAN (one with an internal 3.3V transceiver, one on expansion connector).

Spektrum DSM / DSM2 / DSM-X Satellite compatible input.

Futaba S.BUS compatible input and output.

PPM sum signal input.

RSSI (PWM or voltage) input.

I2C.

SPI.

3.3 and 6.6V ADC inputs.

Internal micro USB port and external micro USB port extension.

Features:

Advanced 32 bit CortexM4 ARM high-performance processor.

32 bit STM32STMF100 failsafe co-processor.

Multiple flight modes including self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, and automatic.

Switchable flight modes for Helicopter, Fixed-wing, Multi-rotor, and Model Car.

Multi-sound buzzer interface.

Abundant connectivity options for additional peripherals such as GPS, I2C, and SPI

14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).

Supports DSM Spektrum receiver.

Unix/Linux-like programming environment.

Automatic configuration of peripherals.

Unix/Linux-like programming environment.

Unix/Linux-like programming environment.

Supports sophisticated scripting of missions and flight behavior.

Custom PX4 driver layer ensuring tight timing across all processes.

Applications:

Drone/UAV flight control.

Autonomous aerial photography and videography.

Precision agriculture for crop monitoring and spraying.

Search and rescue missions.

Environmental monitoring.

Infrastructure inspection (such as pipelines, power lines, and buildings).

Wildlife conservation and monitoring.

Disaster management and assessment.

Geographical mapping and surveying.

Delivery services.

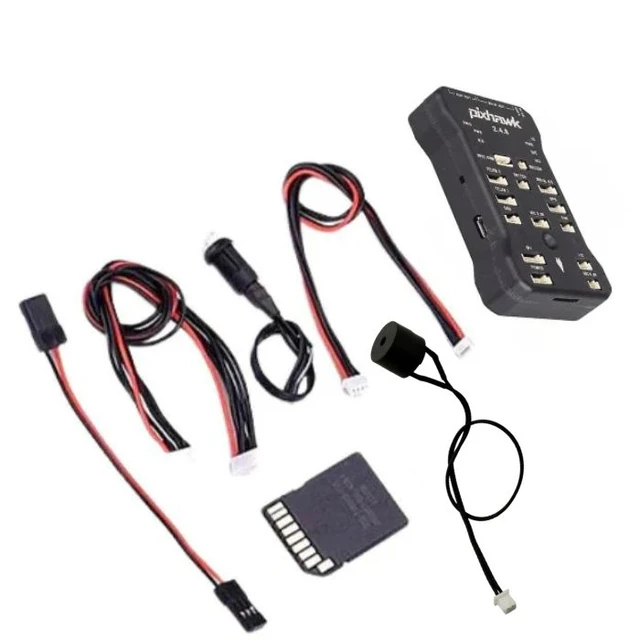

Package Includes:

1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller.

3 x Connecting Cables.

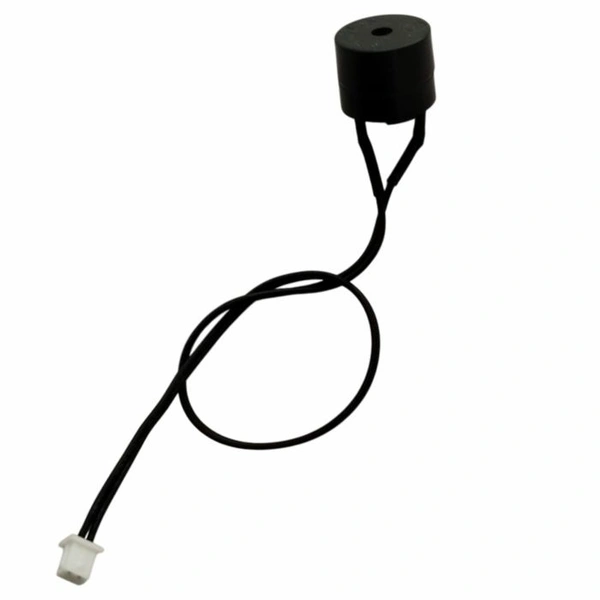

1 x Buzzer Module.

Specifications:

Model

PIX 2.4.8 32 Bit

Input Voltage (V)

7V

Firmware

Mission Planner

Sensors

3-Axis Gyrometer, Accelerometer, High-performance Barometer, Magnetometer

Processor

32bit STM32F427 Cortex M4 core with FPU

The 32-bit STM32F103 failsafe Co-processor

Micro-SD Card Slot

Yes

Dimensions (mm) LxWxH

82 x 50 x 16

Weight (gm)

40
