Piezoelectric Sensor/Transducer/Buzzer - 26mm Diameter Q7 C6

Piezoelectric Sensor/Transducer/Buzzer - 26mm Diameter Q7 C6

Name: Piezoelectric Sensor/Transducer/Buzzer - 26mm Diameter Q7 C6
SKU: SKU-6294
Price: 16 INR
Availability: InStock

₹ 16

₹ 18

11%

Delivery Options

Get delivery at your doorstep

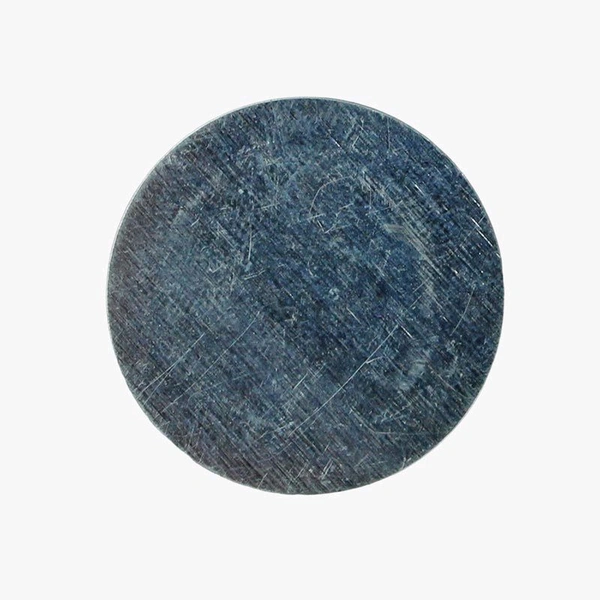

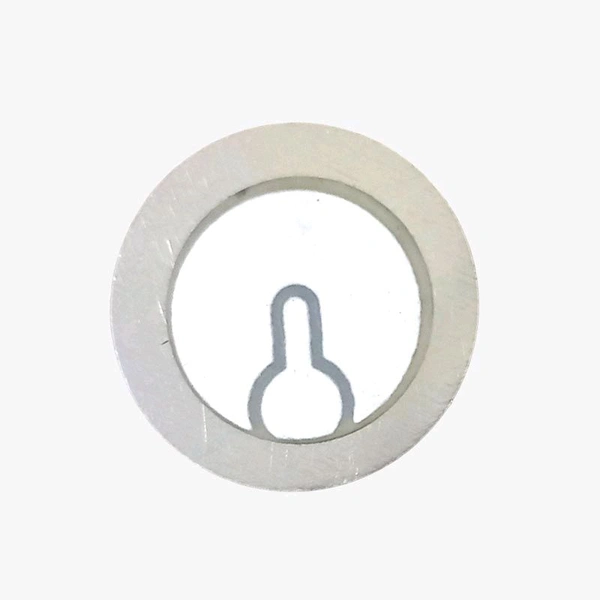

This is a piezoelectric disk which is used to pickup sound from musical instruments and devices. This is made up of selected copper which ensures excellent conductivity and long lasting use. As it gives out analog output you can connect the output to comparator circuit to give out digital output of you can connect an ADC to directly connect to the microcontroller you are using. It can be easily installed and suitable for many kinds of instrument like acoustic guitars, drums as it is small in size and reliable enough to handle any rough use too.

Piezo Sensor Specifications

Color: Silver

Size: Approx. 26 x 26 x 0.5mm

Material: Copper and ceramic

Resonant impedance: max. 300 Ω

Static capacitance: 50000pF±30 percent

Resonant frequency: 1.8±0.3kHz

Package Contents

1× Piezoelectric Sensor
