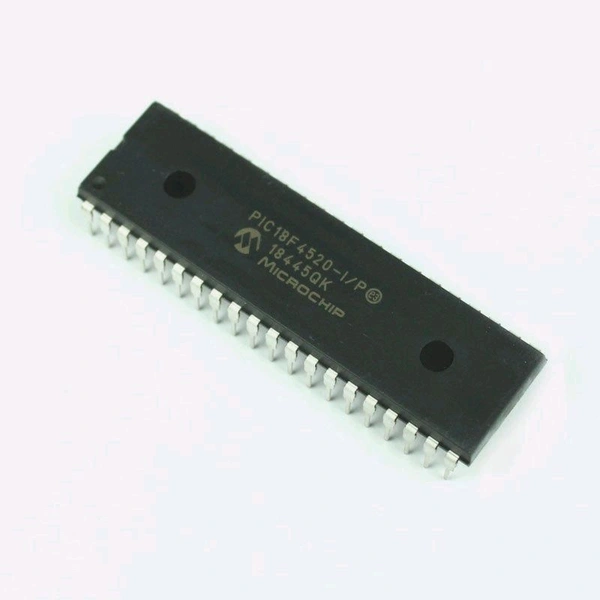

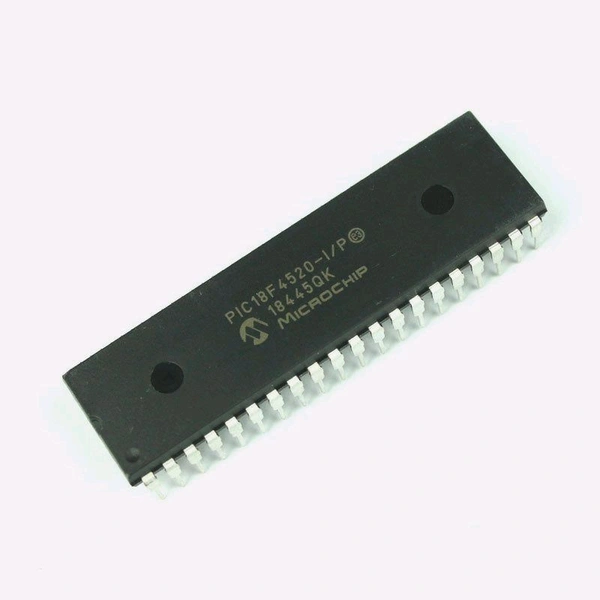

PIC18F4520 8-bit PIC Microcontroller Q2 C6

For debugging and Programming, it has a JTAG interface for on-chip-debug. Maximum operating frequency is 40 Mhz. It has Program Memory of 32768 Bytes and 16384 instructions.

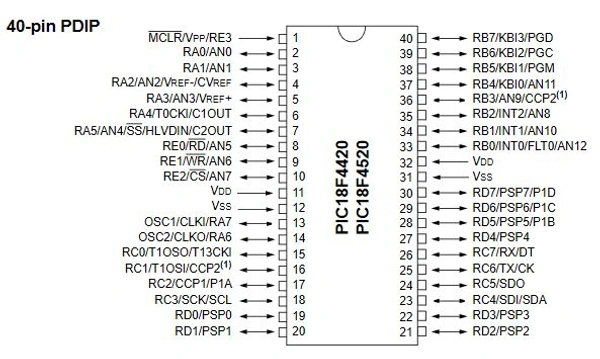

PIC18F4520 pinout:

PIC18F4520 Pinout

PIC18F4520 features, Specification:

Features:

High current sink-source 25 mA/ 25 mA

Three External Interrupts

Four Timer modules (Timer0 to Timer3)

Up to 2 Capture/Compare/PWM (CCP) modules:

     - Capture is 16-bit, max. resolution 5.2 ns (TCY/16)

    - Compare is 16-bit, max. resolution 83.3 ns (TCY)

    - PWM output: PWM resolution is 1 to 10-bit

Enhanced Capture/Compare/PWM (ECCP) module:

    - Multiple output modes

    - Selectable polarity

    - Programmable dead time

    - Auto-shutdown and auto-restart

Enhanced USART module: LIN bus support

Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I2C™ Master and Slave modes

10-Bit, Up to 13-Channel Analog-to-Digital Converter (A/D) module with Programmable Acquisition Time

Dual Analog Comparators with Input Multiplexing

Specification:

Program Memory Type : Flash

Program Memory Size (KB) : 32

CPU Speed (MIPS/DMIPS) : 10

SRAM (B) : 1536

Temperature Range (°C) : -40 to 125

Operating Voltage Range (V) : 2 to 5.5

Pin Count : 40

Timers : 1x 8-bit, 3 x 16-bit

ADC Input : 13 ch, 10-bit

Capture/Compare/PWM Peripherals : 1 CCP, 1 ECCP

Digital Communication Peripherals : 1-UART, 1-SPI, 1-I2C

Data EEPROM/HEF (bytes) : 256

PIC18F4520 Applications:

Data Processing

Sensor Integration

Data retention

Communication between PC and Microcontroller

Small Industrial applications.

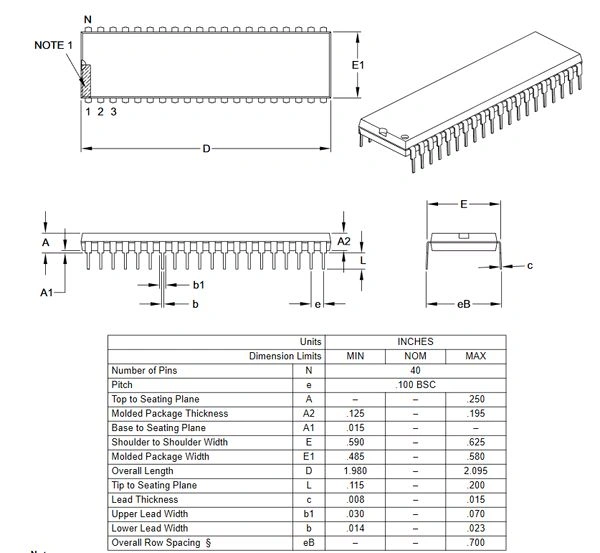

PIC18F4520 Dimension and footprint:

Example Projects on PIC18F4520:

PIC to PIC Communication using RF Module

Additional Resources:

PIC18F4520 Datasheet



Package Contains

1x PIC18F4520
