PIC16F676 Microcontroller Q2 C6

It has 128 bytes of EEPROM and 64 Bytes of SRAM. For debugging and Programming, it has an ICD2 interface with optional header adapter. The Pull-up state of the pins can be programmed to decrease additional resistor counts in applications.

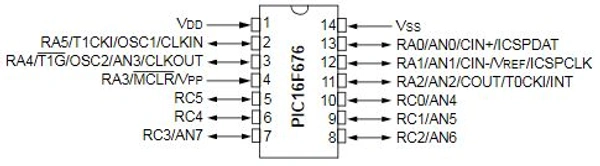

PIC16F676 pinout:

PIC16F676 pinout



PIC16F676 Specifications

Specification:

128 bytes of EEPROM Data Memory

Programmable pull-up resistors

Individually selectable analog channels

ICD2 programming support or debugging support with optional header adapter

8 oscillator selections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset

Program Memory Type: Flash

Program Memory (KB): 1.75

CPU Speed (MIPS): 5

RAM Bytes:64

Data EEPROM (bytes): 128

Digital Communication Peripherals:1-UART,

Timers:1 x 8-bit, 1 x 16-bit

ADC:8 ch, 10-bit

Comparators:1

Temperature Range (C): -40 to 125

Operating Voltage Range (V): 2 to 5.5

Pin Count: 14

Cap Touch Channels: 8

PIC16F676 Applications:

Analog to Digital conversion

Data processing

Small control projects

Logic devices

Small Industrial applications

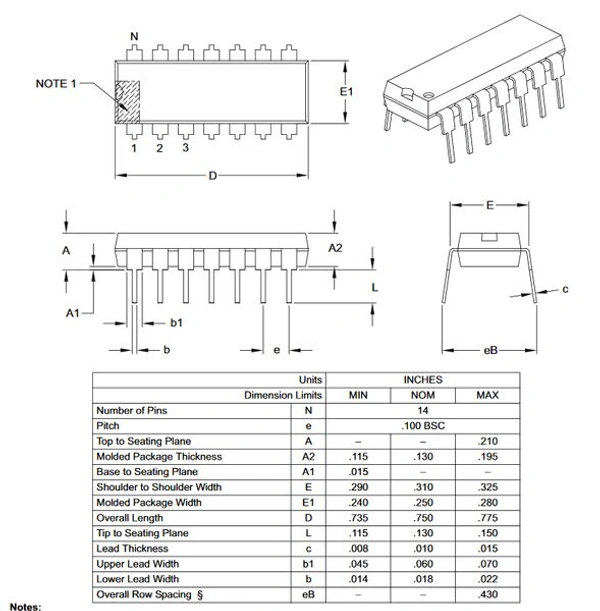

PIC16F676 Dimension and footprint:

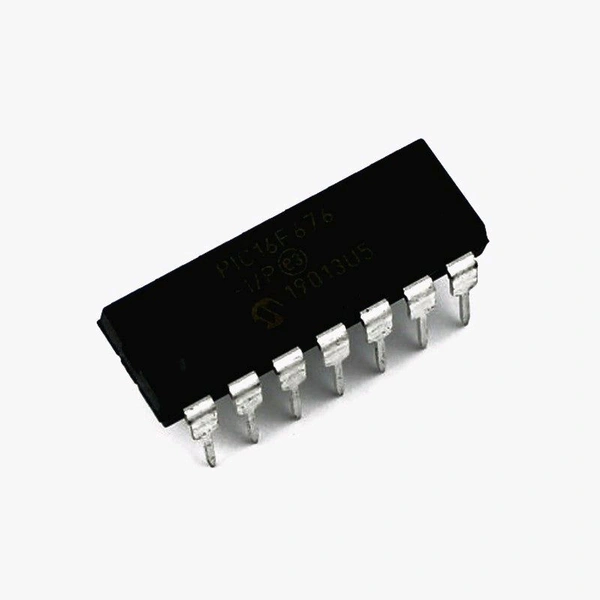

PIC16F676

Package Contains

1x PIC16F676 Microcontroller
