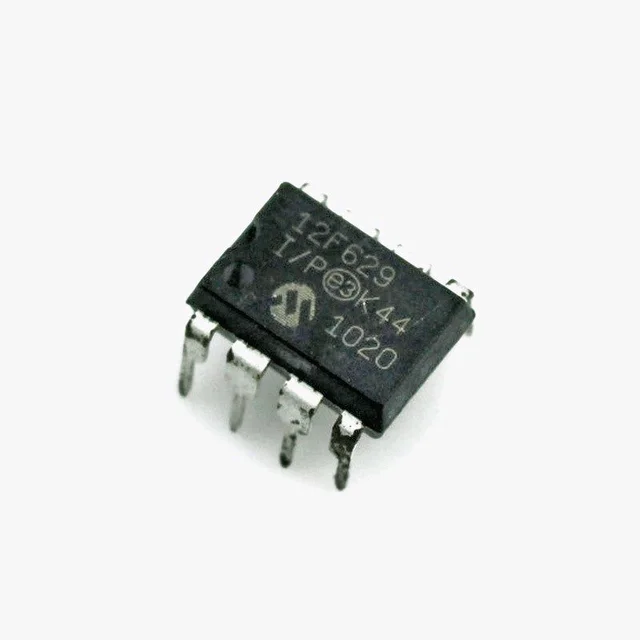

PIC12F629 8-bit PIC Microcontroller Q2 C6

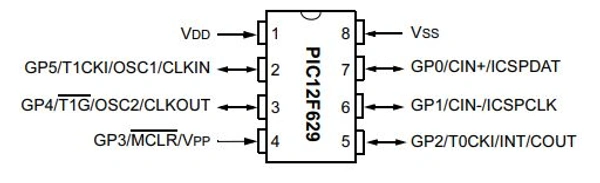

PIC12F629 Pinout

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller comes with Microchip’s powerful PIC MCU architecture into an 8-pin package and features 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.



PIC12F629 Features & Specifications

Program Memory Type: Flash

Program Memory Size (KB): 1.75

CPU Speed (MIPS/DMIPS): 5

SRAM (B): 64

Data EEPROM/HEF (bytes): 128

Timers: 1 x 8-bit, 1 x 16-bit

Number of Comparators: 1

Temperature Range (°C): -40 to 125

Operating Voltage Range (V): 2 to 5.5

Pin Count: 8

6 I/O pins with individual direction control

Power saving SLEEP mode

Operating Current: 8.5 µA @ 32 kHz, 2.0V, typical



Programming PIC Microcontroller

To program the PIC microcontroller you will need an IDE (Integrated Development Environment, a compiler, and an IPE (Integrated Programming Environment).

IDE: MPLABX v3.35

IPE: MPLAB IPE v3.35

Compiler: XC8

Microchip has given all these three software for free. They can be downloaded directly from their official page.



Additional Resources:

PIC12F629 Datasheet

Programming PIC Microcontroller
