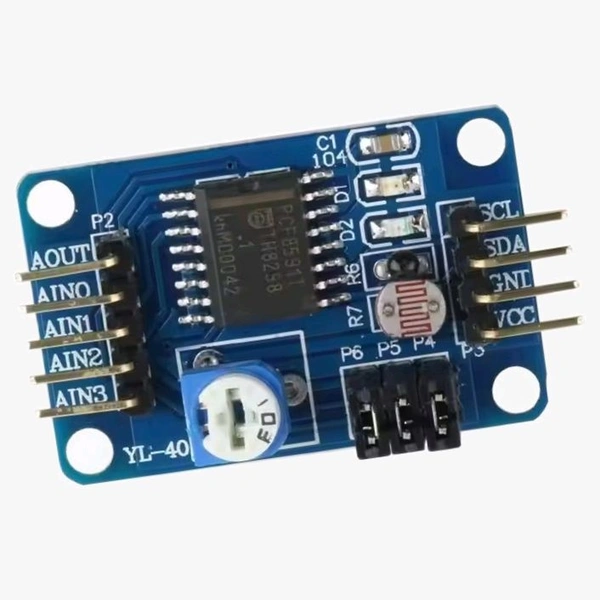

The PCF8591 Module is an 8-bit Analog-to-Digital (ADC) and Digital-to-Analog Converter (DAC) with an I2C communication interface. It is designed to convert analog signals to digital for microcontrollers that lack an ADC, while also providing a DAC for generating analog outputs. This module is widely used in sensor interfacing, signal processing, and data acquisition applications.

Features of PCF8591 Module - ADC/DAC Converter Module:

4-channel 8-bit ADC and 1-channel 8-bit DAC

I2C communication for simple integration with microcontrollers

On-board potentiometer for testing the analog input functionality

On-board light and temperature sensors for demonstration purposes

Adjustable reference voltage for customized signal processing

Compact and easy-to-use design with clear pin labeling

Specifications of PCF8591 Module - ADC/DAC Converter Module:

Operating Voltage: 2.5V - 6V DC

Analog Input Channels: 4 (AIN0, AIN1, AIN2, AIN3)

Analog Output Channels: 1 (AOUT)

Resolution: 8-bit ADC & DAC

Interface: I²C (400kHz max clock speed)

Default I²C Address: 0x48 (configurable)

Sampling Rate: Up to 11.1 kSps

Operating Temperature: -40°C to +85°C

Dimensions: Compact and easy to integrate into projects

Package Includes:

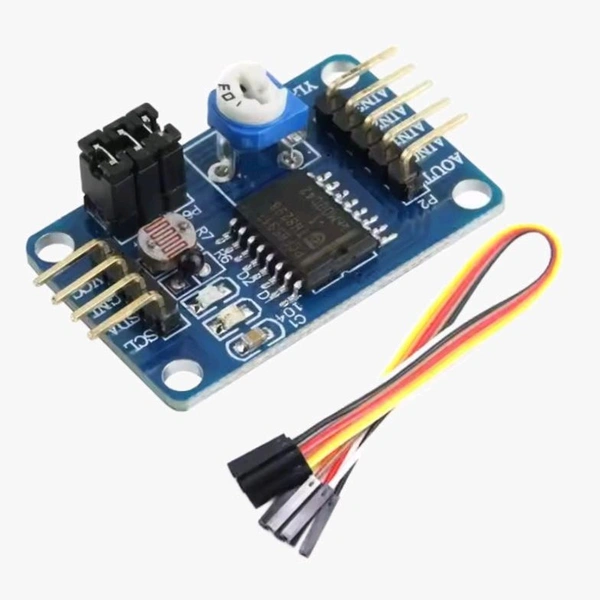

1 × PCF8591 Analog-to-Digital / Digital-to-Analog Converter Module

1 × Set of Female to Female Jumper Wire Cables
