Name: PCF8563 I2C Real Time Clock RTC Module H5 A12
SKU: SKU-6578
Price: 105 INR
Availability: InStock

₹ 105

₹ 150

30%

Delivery Options

Get delivery at your doorstep

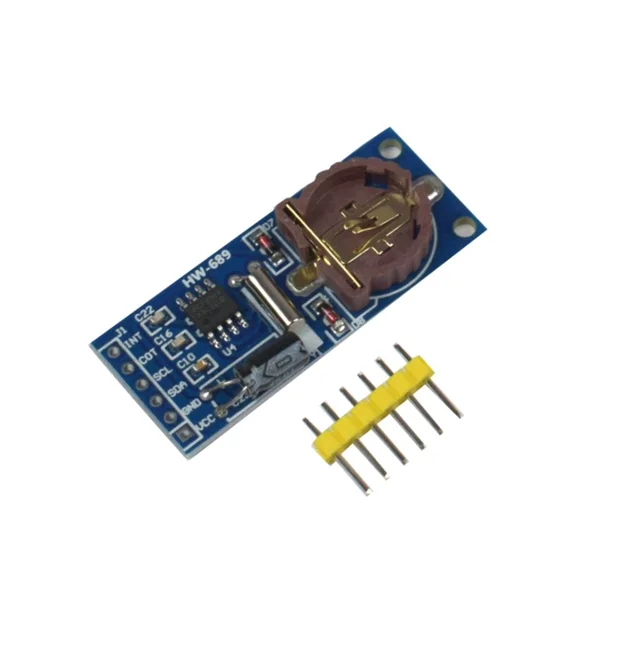

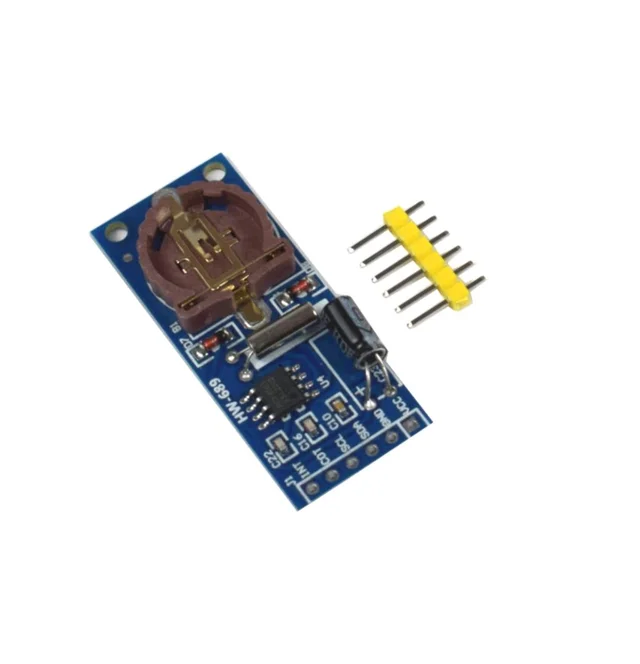

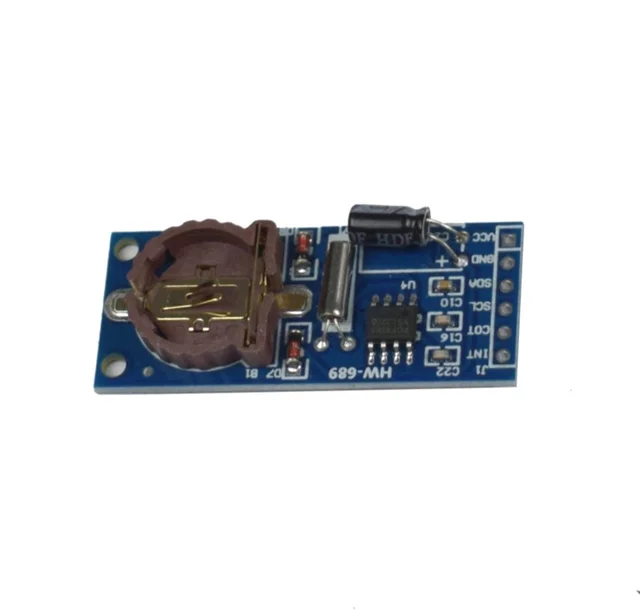

This is an HW-689 PCF8563 Real-time Clock RTC module. It has a variety of functions, including an external programmable clock output, an alarm, a timer, features, external quartz, and a backup battery.

The PCF8563 RTC Board provides a real-time clock function that is powered by an

onboard battery and operates independently even when the MCU is turned off. I2C real-time clock (RTC) is less expensive and more precise than the DS1302 or DS1307.

Features

High Accuracy

Low Power Consumption

Can be interfaced with Arduino

Low Cost

I2C Real Time Clock (RTC)

Pinout:

Pin-1: INT

Pin-2: COT

Pin-3: SCL

Pin-4: SDA

Pin-5: GND

Pin-6: VCC

Specifications

Model HW-689

Type Real-time Clock RTC Module

Using Inbuilt IC PCF8563

Size 43*17mm

No of Pins 06

Voltage Range 1 - 5.5V

Interface I2C
