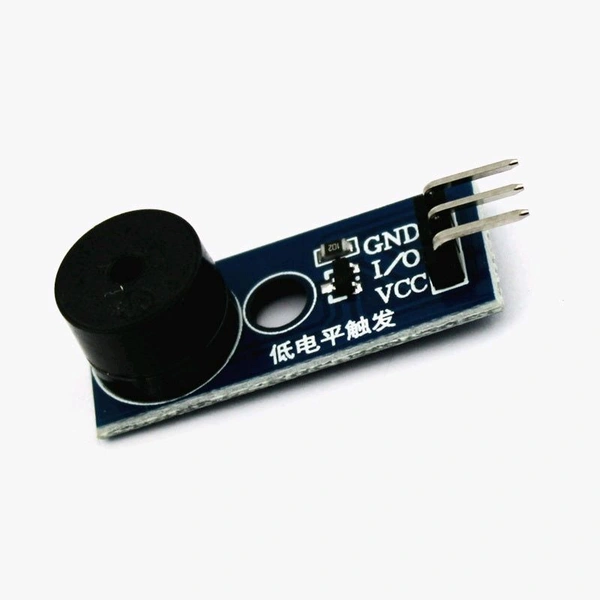

Passive Buzzer Module with PCB Q7 C6

This module could work from 4V to 8V DC and it is well suited for a broad range of microcontrollers ranging from the Arduino to Raspberry Pi. It is also compatible with a pin pitch of 2.54mm while functioning with microcontroller development boards such as the Arduino or different development boards. This module responds to programmatic changes with a lovely or annoying buzzing noise that can be altered over a range of frequencies to ensure maximum irritation in alert related systems.

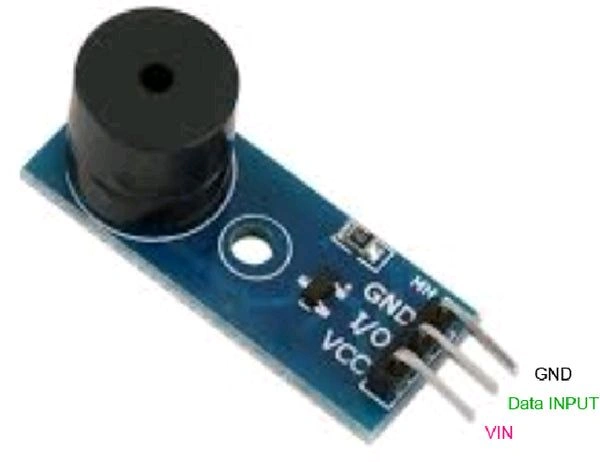

Passive Buzzer Module pinout:

Passive-Buzzer Module Pinout

 Feature and Specification: -

Operating Voltage: 4 ~ 8V DC

Working Current: Less than 25mA

Tone Generation Range: 1.5 ~ 2.5kHz

Pitch: 2.54mm

Lead Material: Stainless Steel



Passive Buzzer Module Applications:

Alert System

Clocks

Toys

Different embedded Projects

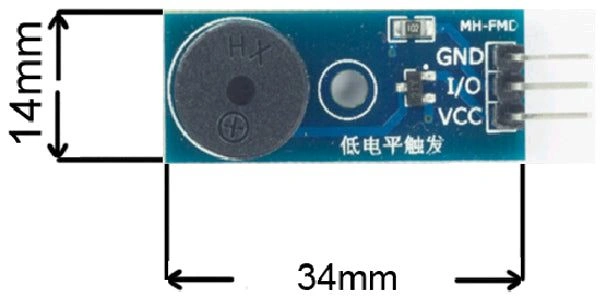

Passive Buzzer Module Dimension:

Passive-Buzzer-Dimension

Example Projects on Passive Buzzer Module:

Buzzer Module Interfacing

Additional Resources:

Passive Buzzer Module Datasheet



Package Contains

1x Passive Buzzer Module
