OV7670 VGA Camera Module for Arduino

Product Details

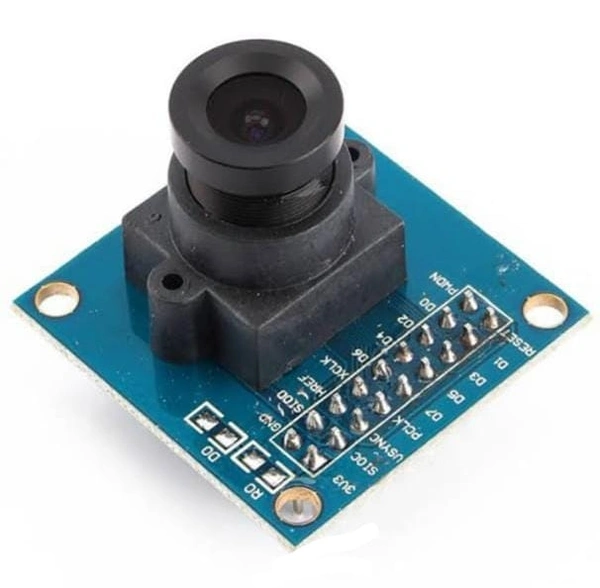

• Product: VGA camera module or image sensor
• Model: OV7670
• Dimension: 30.5mm x 30.5mm
• Package contains: 1 x OV7670 VGA camera module

OV7670 is a low CMOS image sensor and a VGA camera with a low operating voltage that provides the full functionality of a single-chip VGA camera and image processor in a small package. Through an SCCB (Serial Camera Control Bus) control, It provides full-frame, sub-sampled, and windowed 8-bit images in a wide range of formats. This camera module has an image array that can reach up to a maximum of 30 frames per second in VGA with complete user control over image quality, formatting, and output data transfer. All the functions or processes of image processing like exposure control, white balance, gamma, color saturation, hue, chroma, etc can be controlled and programmed through SCCB control.

OV7670 VGA Camera Module uses proprietary sensor technology to improve image quality by reducing lighting/electrical sources of image contamination, such as fixed pattern noise, smearing blooming, etc and capable to produce a clean and fully stable color image.

Features

The single power supply of 3.3V (onboard voltage regulator)

Standard 2.54mm pitch header connector

Mounted with high-quality F1.8 / 6mm lens

High sensitivity for low light application

Standard SCCB interface which is compatible with I2C interface

Automatic image control function like automatic exposure control, automatic white balance, automatic band filter, and automatic black level filter

     Compatibility to control image quality including color saturation, hue, gamma, edge enhancement, and anti-blooming

Noise reduction and defect corrosion

Support LED and flash strobe mode

Support scaling

Automatic UV and saturation-level adjust

Flickers (50/60Hz) auto-detection<l

De-noise level auto adjustable

Specification

Power supply: 2.45V to 3.3V

IO voltage: 2.5V to 3V

Power operatio

Active: 60mW typical (15fps VGA YUV format)

Standby: &lt;20�A

Photosensitive array: 640�480

Sleep: &lt;20?A

Output Formats (8-bit):

YUV/YCbCr4: 2:2&nbsp;

RGB565/555/444&nbsp;

GRB4: 2:2&nbsp;

Raw RGB Data

Optical/lens size: 1/6 ?

FOV: 25 �

Maximum image transfer rate: 30fps for VGA

Sensitivity: 1.3V / (Lux-sec)

SNR: 46 dB

Dynamic range: 52 dB

View Mode: Progressive

Electronic Exposure: 1 line to 510 line

Pixel Size: 3.6?m x 3.6?m

Dark current: 12 mV / s at 60 ?

Temperature Range

Operating: -30 �C to 70 �C

Stable: 0 �C to 50 �C

           Pinout

Application

Cellular phones

PDAs

DIY toys

DIY electronics and robotics projects
