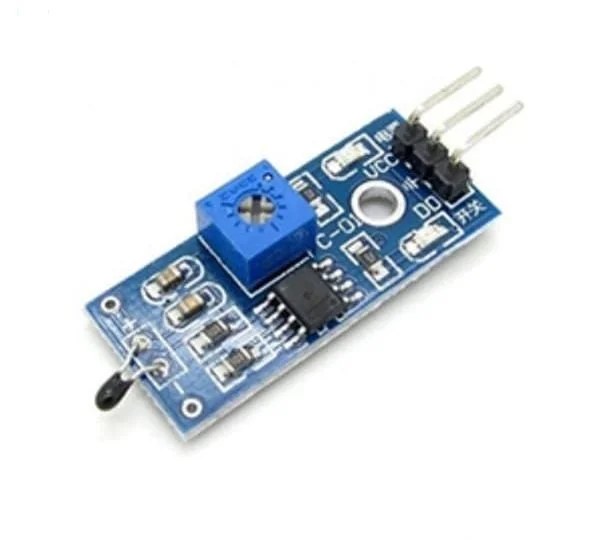

NTC Thermistor Temperature Sensor Module - 4 Pins
₹ 99 / Piece
Delivery Options
Get delivery at your doorstep
Product details
- Product: Thermistor Module
- Sensor: NTC thermistor
- Pin counts: 4
- Dimension: 32mm x 14mm x 5mm
Thermistor Module is a temperature sensor module which senses the temperature by the thermistor and converts it into a digital and analog output. The thermistor is the short form of thermal resistance and its resistance increases and decreases in the proportion of temperature. As this is an NTC so its resistance decreases with increase in temperature.
The module has on-board a variable resistor or potentiometer knob that is used to change the sensitivity of thermistor by adjusting knob. This device has the precision up to 0.1 �C and time constant less than 10s.
Specification
Input voltage: 3.3V to 5V
Sensitivity: Adjustable
Temperature range: -25�C to 80�C
Precision: up to 0.1�C
The time constant: 10s
Output: both analog and digital
