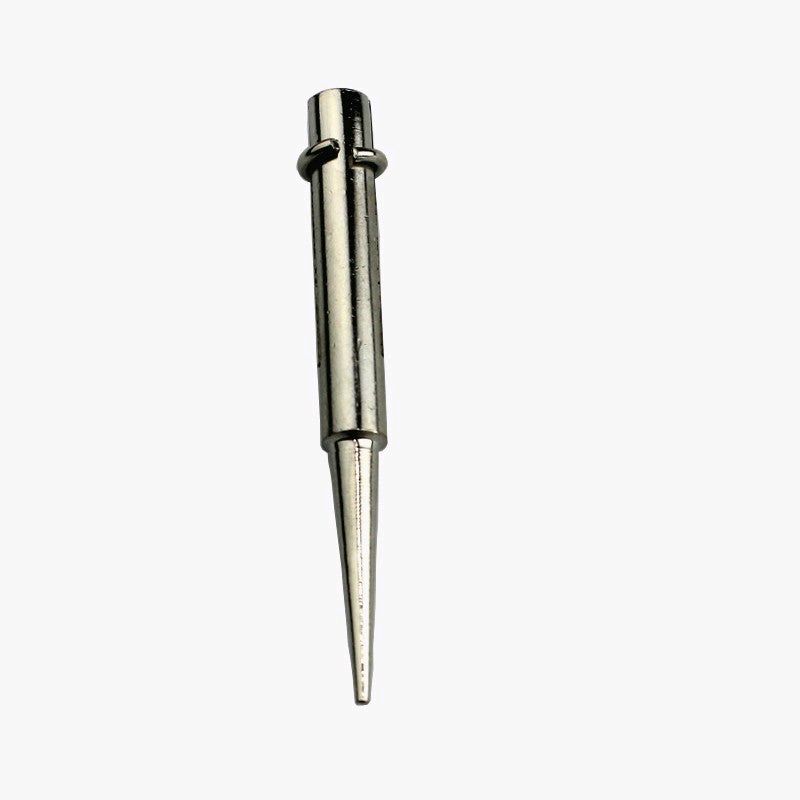

Noel Pointed Soldering Tip (25watt) Q13 C3

It is a replacement tip for the commonly used 5W, 8W, 12W and 25W soldering rods. The tip can be used to solder electrical wires also.

It is also nickel plated making it stable in terms of heating. It is quite stable with very low drifting even in the cold ambient temperature also.



Soldering tip Specifications:

Suitable for : Micro soldering iron

Material : Nickle

Tip type : pointed

Operational wattage: 5W, 8W, 12W and 25 Watt

Diameter: 5mm

Soldering tip Applications:

Replacement for existing solder iron tip

Precision level soldering

Solder Electrical Wires

Through Hole components soldering.

Few Tips for Safety and Solder tip Life

Do not use the solder tip in other forms of material other than soldering, for example, making holes in plastic boards or something like that.

Always put solder across the tip before turning off the soldering iron.

Turn off the Soldering iron when not in use.

Make sure that the solder tip is cleaned using proper flux and water based sponge.

Do not use any mechanical file like thing to clean the solder tip.



Example On How to change soldering Tip:

How to clean Soldering TIP

Additional Resources:

Soldering Steps for Beginner



Package Contains

1x Pointed soldering tip
