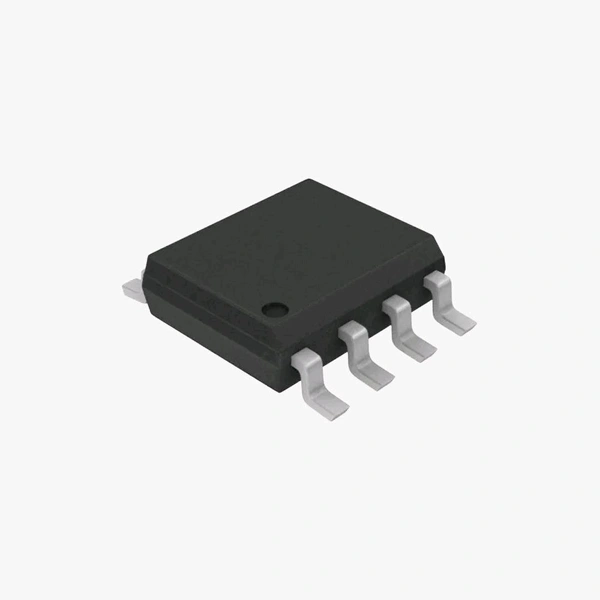

NE5532D Dual Low Noise OpAmp IC - SOIC-8 SMD Package Q8 C2

Features

Low Noise Performance: Delivers superior low-noise characteristics with a typical noise density of 5 nV/√Hz, ideal for high-fidelity audio circuits.

High Slew Rate: Provides a typical slew rate of 9 V/μs for fast transient response and low distortion.

Low Total Harmonic Distortion (THD): Ensures accurate signal reproduction with minimal distortion.

Wide Operating Voltage Range: Operates from ±3V to ±15V, supporting both single and dual supply configurations.

High Output Drive Capability: Drives low impedance loads, suitable for a wide range of audio and signal processing applications.

Unity-Gain Stable: Ensures reliable operation across various gain configurations.

Compact SOIC-8 Package: Optimized for surface-mount applications to save PCB space.

NE5532D OpAmp Specifications

Number of Channels: Dual (2)

Input Offset Voltage: Typically 0.5 mV

Bandwidth: 10 MHz (typical)

Supply Current: 8 mA (maximum)

Output Voltage Swing: ±13V (typical at ±15V supply)

Temperature Range: -40°C to +85°C

Pinout and Configuration

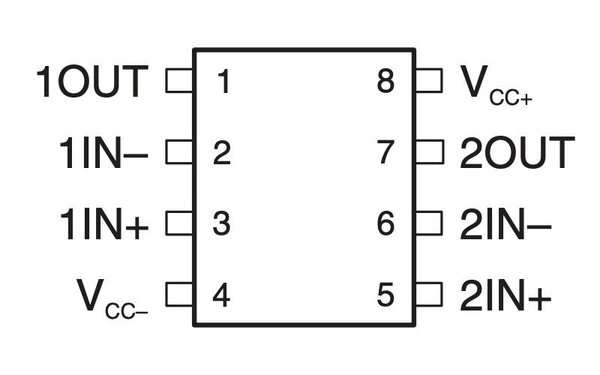

NE5532D Pinout

Pin Name

Pin No

Description

1IN+

3

Noninverting Input

1IN-

2

Inverting Input

OUT1

1

Output

2IN+

5

Noninverting Input

2IN-

6

Inverting Input

2OUT

7

Output

VCC+

8

Positive Supply

VCC-

4

Negative Supply



Applications

High-fidelity audio preamplifiers and mixers

Signal conditioning circuits

Active filters and oscillators

Industrial instrumentation

Medical and scientific equipment

Datasheet

Package Includes:

1 x NE5532D Dual Low Noise OpAmp IC - SOIC-8 SMD Package
